Digital camera NileCAM130_CUOAGX

WDRHDRindustrial

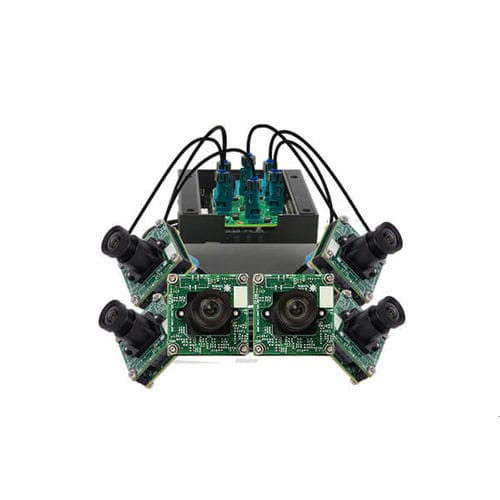

NileCAM130_CUOAGX is a multi-camera solution for the NVIDIA® Jetson AGX Orin™ / AGX Xavier™ development kit. This camera kit houses NileCAM130 - a 13MP GMSL2 camera based on the AR1335 sensor from onsemi. It comes with a high-performance Image Signal Processor (ISP), a GMSL2 deserializer board with 6 camera connectors, and a 15 meters coaxial cable with FAKRA connector. NileCAM130_CUOAGX allows to connect up to six NileCAM130 camera modules and enables 4K streaming simultaneously. This high-resolution camera streams video data of 4K at 15 fps, and 13MP at 10 fps Key features: Frame Rate: 4k @ 15fps, 13MP @ 10fps and HD @ 72fps Up to 816 fps for Custom ROI * Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU Control for individual cameras Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m Module features: Sensor: AR1335 from onsemi® Focus Type: Fixed focus Sensor Resolution: 13MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/3.2" Output Format: Uncompressed UYVY Pixel Size: 1.1μm x 1.1μm Sensor Active Area: 4208(H)x3120(V) Array Size: 4208(H)x3120(V) Responsivity: 4700 e-/lux-sec SNR: 37 dB Dynamic Range: 69 dB Holder: M12 (S-Mount) FOV: 110°(D), 86°(H), 64°(V) (with the lens provided by e-con)
