Digital camera NileCAM80_CUOAGX

machine visionfor car safetyfor quality control

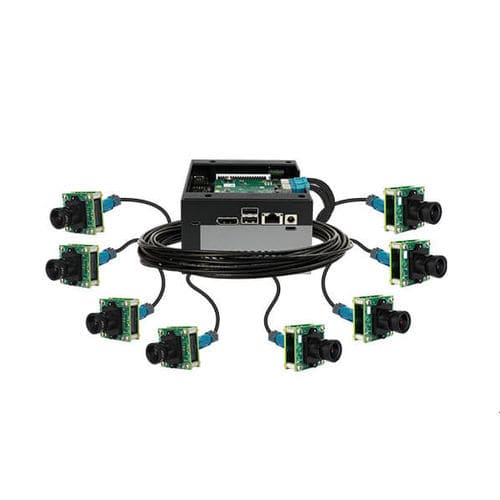

NileCAM80_CUOAGX is a 4K camera module that can be readily integrated with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kits. This camera is based on the 1/2.8" IMX415 CMOS sensor from Sony® Starvis. Its low light sensitivity delivers exceptional clear color images even at extremely low light or even no light conditions. This 4K camera is ideal for applications that require monitoring a huge area such as parking lot management, traffic monitoring systems, smart surveillance, sports vision etc. This camera contains NileCAM80 - an 8MP color camera module with GMSL serializer, a 15 meter coaxial cable and an GMSL deserializer board with 8 camera connectors. Also, NileCAM80_CUOAGX has a standard M12 lens holder which gives customers an option to use customized optics or lenses for their applications. Key features: Frame Rate: HD @ 60fps, Full HD @ 42 fps, 4K @ 22 fps Refer pdfDatasheet for complete frame rate details. NV12 streaming S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements. Lightweight, versatile, and portable design Interface: Interface: GMSL Connector: FAKRA connector Cable Length: 15m Module features: Sensor: IMX415 from Sony® Starvis® Focus Type: Fixed focus Sensor Resolution: 8MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.8" Output Format: RGB RAW 10/12-bit Pixel Size: 1.45 μm x1.45 μm Sensor Active Area: 3864(H) x 2192(V) Array Size: 3864(H) x 2228(V) Holder: M12 (S-Mount) FOV: 131° (D), 113° (H), 61° (V) (with the lens provided by e-con)
