Digital camera STURDeCAM25_CUOAGX

industrialfor roboticsagriculture

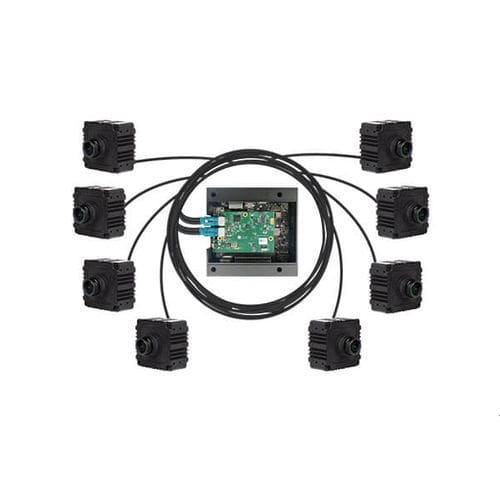

STURDeCAM25_CUOAGX is a full HD GMSL2 color global shutter camera with an IP67 enclosure that ensures dust and waterproofing. This camera's global shutter efficiency helps capture sharp images of moving objects without any shutter artifacts. It comes with an inbuilt ISP which is tuned to achieve the best quality image output from the sensor. Its large pixel size of 3.0 μm and high Signal to Noise Ratio help in producing exceptionally clear and sharp images with less noise even in challenging lighting conditions. STURDeCAM25_CUOAGX uses the GMSL2 interface to reliably transmit uncompressed video data at 120 fps up to a distance of 15 meters with very low latency. STURDeCAM25_CUOAGX is a multi-camera solution with the ability to connect up to 8 cameras - making it suitable for pretty much any application that requires a multi-camera setup. Also, STURDeCAM25 has off-the-shelf support for the Jetson development kit as well as Connect Tech's Rogue, Rudi-AGX, and Rudi-NX platforms. This camera is an ideal solution for delivery robots, patrol robots, robotic arms, goods-to-person robots, agricultural trucks, and agricultural robots. Key features: Frame Rate: 2.3 MP @ 60 fps, Full HD @ 65 fps & HD @ 120 fps Refer pdfDatasheet for more details. Output format: Uncompressed UYVY format High speed 4-lane MIPI CSI-2 interface S-mount IP67 compliant lens focused and glued at our factory Lightweight, versatile, and portable design
