Digital camera NileCAM82_CUOAGX

machine visionfor quality controlfor process monitoring

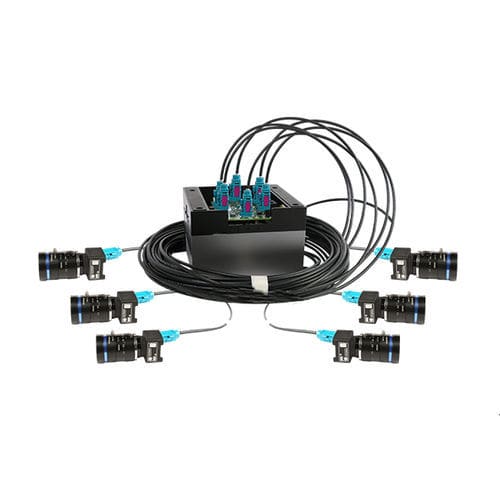

NileCAM82_CUOAGX is an 8.4MP GMSL2 multi-camera solution for the NVIDIA® Jetson AGX Orin™ development kit. This camera kit houses NileCAM82 - an 8MP camera module based on the IMX485 sensor from Sony® Starvis™. It comes with a GMSL2 deserializer board with 6 camera connectors, and a upto 15 meters coaxial cable with a FAKRA connector. Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing. Also, this GMSL2 multi-camera solution allows connecting up to six NileCAM82 camera modules and enables 4K streaming simultaneously. This high-resolution camera streams video data of 4K at 39 fps, and FullHD at 62 fps. Key features: Frame Rate: Streams Full HD @ 62fps and 4k @ 39fps Refer pdfDatasheet for complete frame rate details. Output Format: YUV(NV12) High-speed MIPI CSI-2 interface to connect with the CPU Control for individual cameras Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 3m & 15m Module features: Sensor: IMX485 sensor from SONY® Starvis Focus Type: Fixed focus Sensor Resolution: 8.4MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/1.2" Output Format: RAW10-bit & RAW12-bit Pixel Size: 2.9 μm x 2.9 μm Sensor Active Area: 3864(H) x 2180(V) Array Size: 3864(H) x 2200(V) Holder: CS-Mount* FOV: 33° (D), 29° (H), 15° (V) (with the lens provided by e-con)
