Digital camera NileCAM85_CUQRB5

machine visionfor roboticsdetection

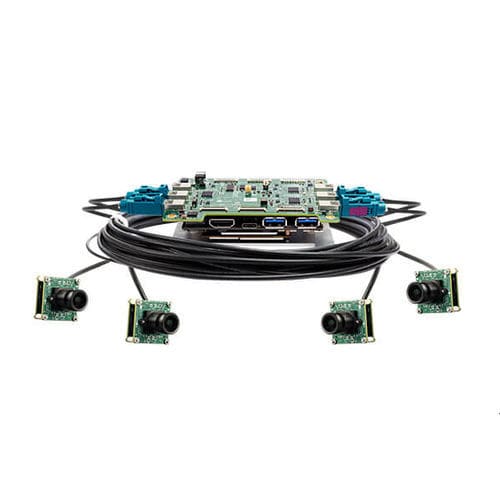

NileCAM85_CUQRB5 is a 4K GMSL 2 camera for the Qualcomm® Robotics RB5 Core Kit. This Qualcomm camera houses NileCAM85 - an 8MP Sony® STARVIS IMX715 camera module. This GMSL camera uses a shielded coaxial cable to stream high frame rate uncompressed video data of 4K @ 30fps up to a distance of 15 meters with very low latency. Also, this 8MP camera has an M12 lens holder which offers customers an opportunity to use the lens of their choice. Highlights: Houses NileCAM85 - 8MP Sony Starvis IMX715 Camera Module Ultra-Low light performance Plugs into Qualcomm® Robotics RB5 Development Kit (up to 4 cameras) Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector Shielded coaxial cable to transmit power and data up to 15m Key features: Frame Rate: Streams 4K @ 30fps Refer pdfDatasheet for complete frame rate details. Uses Qualcomm QRB5165 ISP for image processing High-speed MIPI CSI-2 interface to connect with the CPU S-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 3m/15m
