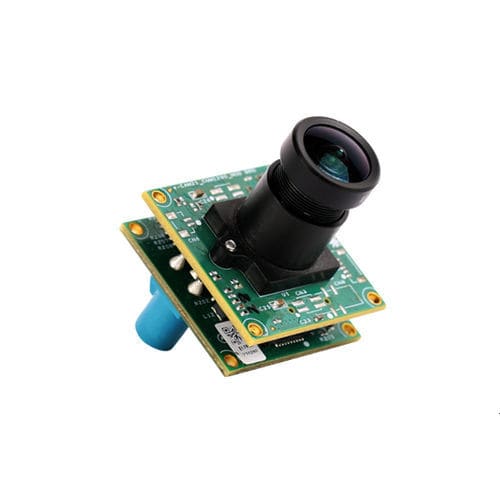

Digital camera NileCAM210_CUOAGX

machine visionfor car safetyfor quality control

NileCAM210_CUOAGX is a 2 MP GMSL camera for NVIDIA® Jetson Xavier™ / Orin™ development kit. It is based on a 1/2.8" Sony IMX462 image sensor. It uses the GMSL2 interface with a FAKRA connector to transfer video data of HD and Full HD @ 60fps up to 15m with low latency. Also, this multi-camera solution connects upto six 2 MP custom lens camera modules with the Jetson Xavier™/ Orin™ development kit. Key features: Frame Rate: Streams Full HD @ 60fps and HD @ 60fps Refer pdfDatasheet for complete frame rate details. Output format: RAW Bayer 12-bit High-speed MIPI CSI-2 interface to connect with the CPU Control for individual cameras Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m Module features: Sensor: IMX462 sensor from SONY® Starvis Focus Type: Fixed focus Sensor Resolution: 2MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.8" Output Format: RAW 12-bit Pixel Size: 2.9μm x 2.9μm Sensor Active Area: 1945H x 1097V Array Size: 1945H x 1097V G Sensitivity: 2.376V at 12-bit HCG mode, 0.921V at 12-bit LCG mode Holder: M12 (S-Mount) FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
