HDR camera STURDeCAM20_CUOAGX

industrialfull-colorVGA

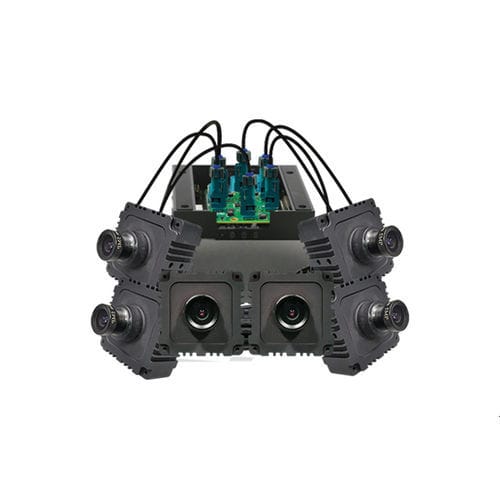

STURDeCAM20_CUOAGX is a GMSL2 HDR camera that is part of the IP67-rated series of cameras from e-con Systems called STURDeCAM. It can be readily evaluated with NVIDIA Jetson AGX Orin™ / AGX Xavier™ - the most powerful processor used in embedded vision applications today. This camera - based on the AR0230AT sensor - leverages the GMSL2 interface to transmit data up to a distance of 15 meters using a shielded coaxial cable and FAKRA connector. In addition, this Full HD camera comes with a high-performance Image Signal Processor (ISP) and a GMSL deserializer board with 6 camera connectors. One of the key differentiators of STURDeCAM20_CUOAGX is its IP67-rated enclosure that makes the camera dustproof as well as waterproof. This in turn enables use in harsh industrial and outdoor environments with extended life in comparison with ordinary cameras. The HDR feature also makes this long-distance camera suitable for use in bright outdoor lighting conditions while offering good low-light performance. The camera is capable of transferring data in the uncompressed UYVY format at a maximum resolution of FHD at 30 fps. Furthermore, STURDeCAM20_CUOAGX is a multi-camera solution (with the ability to connect up to 6 cameras) and e-con provides you with the sample application required to evaluate it with NVIDIA Jetson AGX Orin™ / AGX Xavier™. Key features: Frame Rate: Asynchronous Mode: Full HD @ 30 fps & VGA @ 60 fps Synchronous Mode: Full HD @ 30 fps & VGA @ 30 fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU S-mount IP67 compliant lens focused and glued at our factory
