HDR camera STURDeCAM21_CUOAGX

for roboticsfor the food industryfull-color

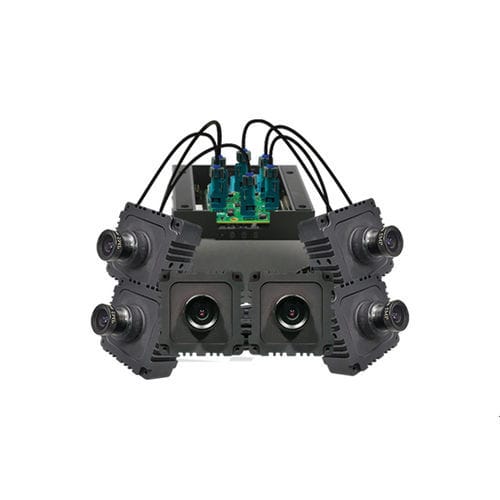

STURDeCAM21_CUOAGX is one of the latest products in the series of IP67-rated cameras from e-con Systems that is compatible with NVIDIA AGX Xavier dev kit and NVIDIA AGX ORIN dev kit. It is a GMSL2 HDR camera that comes with the LFM (Led Flicker Mitigation) feature. Based on the AR0233AT sensor from onsemi, this Full HD camera also comes with a high-performance Image Signal Processor (ISP) which means that it is highly optimized for the best possible image output. The camera uses the GMSL2 interface to connect to the host and offers a maximum length of 15 meters with a shielded coaxial cable and FAKRA connector. In addition, STURDeCAM21_CUOAGX is a multi-camera solution with the ability to connect up to 6 cameras - making it suitable for pretty much any application that requires a multi-camera setup. This GMSL2 camera is designed to transfer Full HD data in the uncompressed UYVY format at 30 fps while the VGA resolution can offer a frame rate of 60 fps. Compatibility with NVIDIA AGX Xavier dev kit and NVIDIA AGX ORIN dev kit also makes this camera an ideal solution for some of the most modern embedded vision applications. Key features: Frame Rate: Asynchronous Mode: Full HD @ 30 fps & VGA @ 60 fps Synchronous Mode: Full HD @ 30 fps & VGA @ 30 fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU S-mount IP67 compliant lens focused and glued at our factory Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m
