HDR camera STURDeCAM34_CUOAGX

for the automotive industryinfraredCMOS

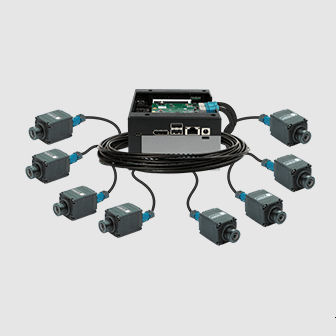

STURDeCAM34_CUOAGX is a 3MP GMSL2™ camera module based on AR0341AT CMOS image sensor. This module stands out with its remarkable features, including super-exposure pixel technology that provides up to 140 dB high dynamic range (HDR) with LED flicker mitigation (LFM) operation (RAW Sensor supports upto 150dB HDR). This super-exposure pixel technology eliminates the need for auto exposure control operations and also minimizes latency in sensing and viewing camera applications, making it highly suitable for Advanced Driver Assistance Systems (ADAS) and other critical applications. With e-con Systems' patented hot-pluggable GMSL support, you can connect or disconnect the camera without system downtime or disruption, providing greater flexibility in critical systems. This camera supports both 3-meter and 15-meter coaxial cables. It is compatible with NVIDIA® Jetson AGX Orin platform, offering synchronized multi-camera solutions that support up to eight cameras through the GMSL2 interface. Key features: Frame Rate: 3MP @ 30 fps Refer pdfDatasheet for complete frame rate details. Output format: UYVY On-board high performance ISP S-mount IP69K compliant lens focused and glued at factory Lightweight, versatile, and portable design Small form factor
