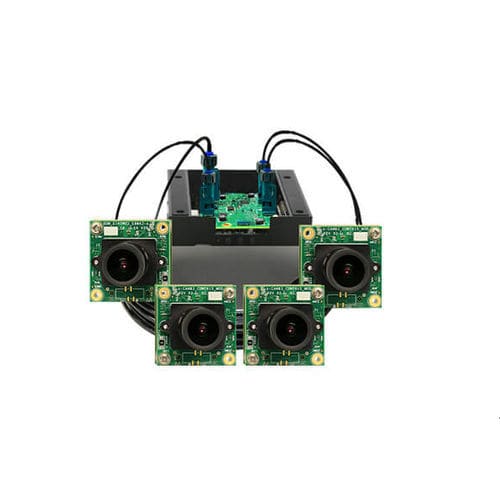

Digital camera Nile3CAM85_CUOAGX

machine visionfor car safetyfor quality control

Nile3CAM85_CUOAGX is an 8 MP ultra-low light GMSL3 camera for NVIDIA® Jetson Xavier™ / Orin™ development kit. It houses Nile3CAM85 - a 1/2.8" Sony® Starvis™ IMX715 camera module. With a coaxial cable length of up to 15m and data transfer of up to 12 Gbps, Nile3CAM85_CUOAGX with Gigabit Multimedia Serial Link 3 (GMSL3) offers greater flexibility to place the cameras in mechanically challenging designs. The flexibility of coaxial cable and the ability to carry video data of HD @ 132fps, Full HD @ 90fps, and 4K @ 90fps, control data, and power in a single cable makes Nile3CAM85_CUOAGX camera fast (low latency), flexible and yet reliable. Also, this multi-camera solution connects up to four 8 MP custom lens camera modules with the Jetson Xavier™/ Orin™ development kit. Nile3CAM85_CUOAGX is also backward compatible with GMSL2. SW2 switch is used for selecting GMSL3 or GMSL2 mode. Key features: Frame Rate: Streams HD @ 132fps, Full HD @ 90fps, and 4K @ 90fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed GBRG RAW10/RAW12 format High-speed MIPI CSI-2 interface to connect with the CPU Control for individual cameras Lightweight, versatile, and portable design Interface: Interface: GMSL3 (12Gbps) Connector: FAKRA connector Cable Length: 15m Backward compatible with GMSL2 mode (6Gbps) Sensor features: Sensor: IMX715 sensor from SONY® Starvis Focus Type: Fixed focus Sensor Resolution: 8MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.8" Output Format: GBRG RAW10/RAW12 Pixel Size: 1.45 μm (H) × 1.45 μm (V) Sensor Active Area: 3848(H) x 2168(V) Array Size: 3840(H) x 2160(V) Holder: M12 (S-Mount)
