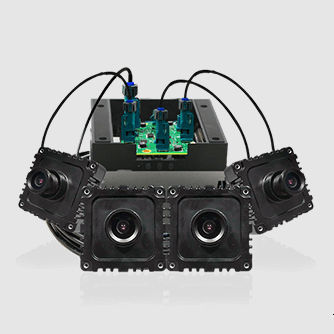

Digital camera ArniCAM20

HDRindustrialmachine vision

ArniCAM20 is a synchronized multi-camera solution that provides 360-degree field of view. This HDR camera solution with LFM comprises of four full HD camera module which is based on a 1/2.5" AR0233AT CMOS image sensor from onsemi®. It uses GMSL2 interface with FAKRA connector to transmit power and data up to 15m when connected to NVIDIA® Jetson AGX Orin™ developer kit.It also comes with dust and waterproof IP67-rated enclosure Key features: Frame Rate: 4 x Full HD camera @ 30fps each output - 1820 x 2478 @ 30fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU S-mount IP67 compliant lens focused and glued at our factory Control for individual cameras Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m Module features: Sensor: AR0233AT from onsemi® Focus Type: Fixed focus Focus Distance : 1m to Infinity Sensor Resolution: Full HD Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.5" Output Format: 24-Bit RGB Bayer Pixel Size: 3μm x 3μm Sensor Active Area: 2048H x 1280V Array Size: 2048(H) x 1280(V) Responsivity: 30.4 Ke-/lux-sec SNR: 43.1 dB Dynamic Range: Max upto 120 dB
