Digital camera STURDeCAM81_CUOAGX

WDRHDRMulti view architecture

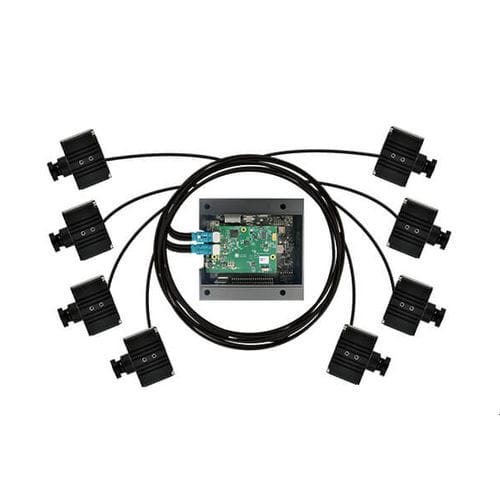

STURDeCAM81_CUOAGX is a IP67 4K GMSL2 camera that features a AR0821 CMOS sensor from onsemi®. This camera is designed to seamlessly integrate with the NVIDIA® Jetson AGX Orin™ / AGX Xavier™ development kit. It allows to connect up to eight STURDeCAM81 camera modules and enables 4K streaming simultaneously. It comes with a high-performance Image Signal Processor (ISP), a GMSL2 deserializer board with 8 camera connectors, and a 15 meters coaxial cable with FAKRA connector. With its dust and waterproof IP67-rated enclosure, STURDeCAM81_CUOAGX ensures reliable performance in challenging environments. The camera excels in producing remarkably clear and sharp images even in challenging lighting conditions, owing to its HDR capability. Additionally, this high-resolution camera offers video data streaming at 8 MP @ 30 fps and Full HD @ 60 fps, providing high-quality visuals for various applications. Key features: Frame Rate: HDR mode: Streams 8MP @ 30 fps & Full HD @ 30 fps Linear mode: Streams 8MP @ 30 fps & Full HD @ 60 fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU Controls for individual cameras Lightweight, versatile, and portable design
