Area gripper CSRP-DS

for workpieces

Description

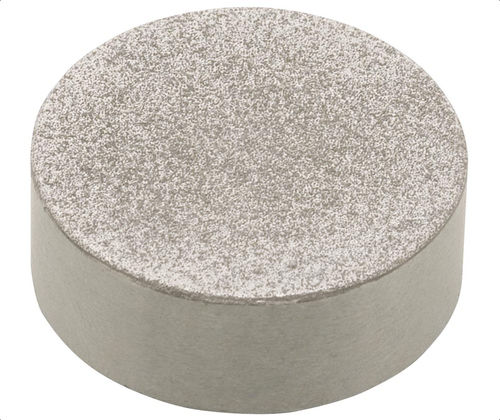

The abrasive diamond surface is permanently fused to a 17-4 stainless steel pad to provide secure holding of smooth or slippery workpieces with minimal clamping pressure. The surface texture is comparable to a 100-grit abrasive; individual diamond particles concentrate holding pressure to small, well-distributed contact points for superior grip and reduced surface marking. The diamond layer delivers excellent wear resistance. The pad is heat treated to Rockwell Rc 43/46. A blind-hole tap on the back enables secure rear mounting; tapped and counterbore variants are available.

Available Parts (excerpt)

• CSRP-305-DS — Thread: #8-32; D: 5/16 in; L: 5/16 in; H: 1/2 in
• CSRP-30-DS — Thread: #8-32; D: 5/16 in; L: 3/16 in; H: 3/8 in
• CSRP-405-DS — Thread: #10-32; D: 3/8 in; L: 5/16 in; H: 1/2 in
• CSRP-40-DS — Thread: #10-32; D: 3/8 in; L: 3/16 in; H: 3/8 in
• CSRP-50-DS — Thread: #10-32; D: 1/2 in; L: 3/16 in; H: 3/8 in
• CSRP-53-DS — Thread: #10-32; D: 1/2 in; L: 5/16 in; H: 1/2 in
• CSRP-625-DS — Thread: 1/4-28; D: 5/8 in; L: 5/16 in; H: 1/2 in
• CSRP-62-DS — Thread: 1/4-28; D: 5/8 in; L: 3/16 in; H: 3/8 in
• CSRP-755-DS — Thread: 1/4-28; D: 3/4 in; L: 5/16 in; H: 1/2 in
• CSRP-75-DS — Thread: 1/4-28; D: 3/4 in; L: 3/16 in; H: 3/8 in

Part Options

• Overall Diameter (in): 5/16, 3/8, 1/2, 5/8, 3/4, 1
• Overall Height (in): 1/2, 3/8

Technical specifications

• Abrasive diamond surface permanently fused to stainless steel pad
• Surface texture comparable to 100-grit abrasive
• Engineered to hold smooth or slippery applications with minimal clamping pressure
• Diamond particles concentrate holding pressure to small, well-distributed contact points for superior grip and minimal surface marking
• Diamond surface provides high wear resistance
• Pad material: 17-4 stainless steel (high strength, corrosion resistant)
• Heat treated to Rockwell Rc 43/46
• Blind-hole tap (rear) for mounting; available in tapped or counterbore variants
• Multiple sizes and thread options as listed above
