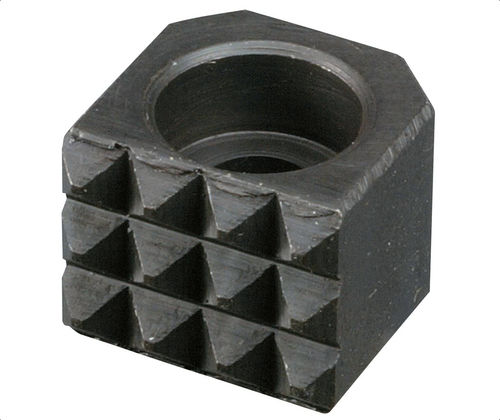

Steel insert HSE series

square

Product overview
Edge grippers from the HSE series, manufactured in M-2 high speed tool steel and hardened to Rc 60/62 with a black oxide finish. Square-edge design with serrations on one side; available tooth patterns indicated by codes (EF, SF, Fine). Counterbored hole provides front mounting with socket head cap screw (SHCS) or low head cap screw (LHCS). Dimensions and mounting features are specified in inches for straightforward integration into existing fixtures.

Available variants

• 101317 | HSE-902 | L 3/8 in × W 3/8 in × H 1/4 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: EF
• 101318 | HSE-902-SF | L 3/8 in × W 3/8 in × H 1/4 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: SF
• 101326 | HSE-903 | L 3/8 in × W 3/8 in × H 3/8 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: EF
• 101328 | HSE-903-SF | L 3/8 in × W 3/8 in × H 3/8 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: SF
• 101363 | HSE-905 | L 3/8 in × W 3/8 in × H 1/2 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: EF
• 101366 | HSE-905-SF | L 3/8 in × W 3/8 in × H 1/2 in | H1 .146 in | F X45° .02 in | F1 X45° 1/16 in | C'bore: #6 SHCS | Tooth: SF
• 101403 | HSE-952 | L 1/2 in × W 1/2 in × H 1/4 in | H1 .170 in | F X45° .02 in | F1 X45° 3/32 in | C'bore: #8 SHCS | Tooth: Fine
• 101405 | HSE-952-EF | L 1/2 in × W 1/2 in × H 1/4 in | H1 .170 in | F X45° .02 in | F1 X45° 3/32 in | C'bore: #8 SHCS | Tooth: EF
• 101406 | HSE-952-SF | L 1/2 in × W 1/2 in × H 1/4 in | H1 .170 in | F X45° .02 in | F1 X45° 3/32 in | C'bore: #8 SHCS | Tooth: SF
• 101435 | HSE-953 | L 1/2 in × W 1/2 in × H 3/8 in | H1 .175 in | F X45° .02 in | F1 X45° 3/32 in | C'bore: #8 SHCS | Tooth: Fine

Technical specifications

• Material: M-2 high speed tool steel
• Hardness: hardened to Rc 60/62
• Finish: black oxide
• Edge style: square-edge gripper; serrations on one side (diamond or straight/ fine variants indicated by tooth pattern codes EF, SF, Fine)
• Mounting: counterbored hole for front mounting with SHCS or LHCS; specified C'bore for #6 or #8 SHCS depending on part
• Dimensions: L, W, H, H1, F and F1 in inches as listed per SKU

Applications & mounting advice

• Intended for precision edge gripping in workholding fixtures, jigs and assembly operations
• Front mounting via counterbore enables flush installation and repeatable positioning
• Select tooth pattern based on material surface and grip requirement: EF (diamond), SF (straight), Fine (closer teeth)

Ordering information

• Specify SKU or part number and required tooth pattern code (EF / SF / Fine)
• Confirm required SHCS size (#6 or #8) and verify dimensions in inches for fixture compatibility
• Contact supplier with SKU for lead time and bulk ordering
