Steel Rest pad CSRP series

with internal thread

Description

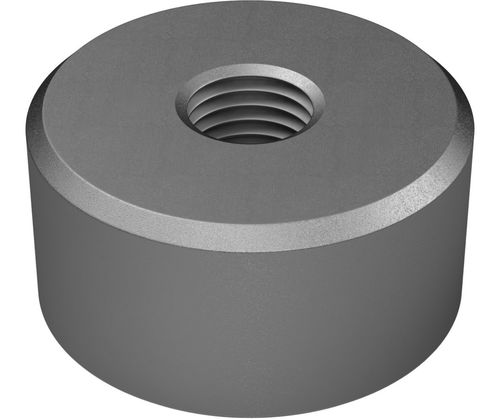

Precision round rest pad from the CSRP series manufactured in 17-4 stainless steel. Heat treated to Rockwell Rc 43/46 for high strength and resistance to chemical and environmental corrosion. Supplied with a blind-hole tapped mounting for secure back-side installation; typical uses include fixture rests, locating and support in machining and automation systems.

General product family
Round rest pads available in tapped, c'bore and solid configurations. Family materials include Delrin, hardened steel, stainless steel and carbide-tipped variants to suit different wear and contact requirements.

Product Types

• CC — Solid carbide rest pads
• CRP — Carbide tipped, tapped
• CSRP — Stainless steel, tapped
• CSRP-C — Stainless steel, c'bore
• DRP — Delrin, tapped
• DRP-C — Delrin, c'bore
• SRP — Hardened steel, tapped
• SRP-C — Hardened steel, c'bore

Part Options

• ID 100777 — SKU CSRP-30 — Thread: #8-32 — D: 5/16 in — L: 3/16 in — H: 3/8 in — F x45°: .03 in
• ID 100788 — SKU CSRP-305 — Thread: #8-32 — D: 5/16 in — L: 5/16 in — H: 1/2 in — F x45°: .03 in
• ID 100796 — SKU CSRP-40 — Thread: #10-32 — D: 3/8 in — L: 3/16 in — H: 3/8 in — F x45°: .03 in
• ID 100813 — SKU CSRP-405 — Thread: #10-32 — D: 3/8 in — L: 5/16 in — H: 1/2 in — F x45°: .03 in
• ID 100827 — SKU CSRP-50 — Thread: #10-32 — D: 1/2 in — L: 3/16 in — H: 3/8 in — F x45°: .03 in
• ID 100837 — SKU CSRP-53 — Thread: #10-32 — D: 1/2 in — L: 5/16 in — H: 1/2 in — F x45°: .03 in
• ID 100843 — SKU CSRP-62 — Thread: 1/4-28 — D: 5/8 in — L: 3/16 in — H: 3/8 in — F x45°: .03 in
• ID 100854 — SKU CSRP-625 — Thread: 1/4-28 — D: 5/8 in — L: 5/16 in — H: 1/2 in — F x45°: .03 in
• ID 100872 — SKU CSRP-75 — Thread: 1/4-28 — D: 3/4 in — L: 3/16 in — H: 3/8 in — F x45°: .03 in
• ID 100892 — SKU CSRP-755 — Thread: 1/4-28 — D: 3/4 in — L: 5/16 in — H: 1/2 in — F x45°: .03 in

Media / Documents
Technical literature available: Gripper Technical Information (PDF).

Technical specifications

• Material: 17-4 stainless steel (for CSRP items shown)
• Heat treatment: Rockwell Rc 43/46
• Mounting: blind-hole tap for back-side mounting
• Shape: round rest pad
• Available configurations: tapped, c'bore, solid
• Other family materials: Delrin, hardened steel, solid carbide, carbide tipped
• Dimensional units on page: inches
• Available part numbers and thread/dimension options listed in the Part Options block above
