Steel Rest pad CSRP-C

with internal thread

Product overview

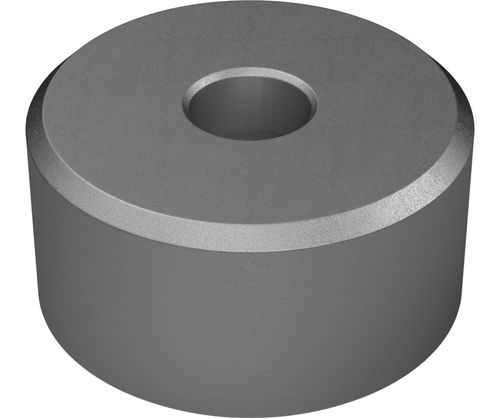

Round rest pads CSRP-C manufactured from 17-4 stainless steel for high strength and corrosion resistance. Heat treated to Rockwell Rc 43/46. Each pad includes a counter-bored front mounting hole designed for installation with a socket head cap screw (SHCS).

Product family / attributes

• Round rest pads for support and locating applications
• Material options on product page: 17-4 stainless steel (this variant), Delrin, steel, carbide tipped
• Mounting options: counter-bored (C'bore) or tapped
• Units: Inch

Product types

• CC — Solid carbide
• CRP — Carbide tipped, tapped
• CSRP — Stainless steel, tapped
• CSRP-C — Stainless steel, counter-bored (current item)
• DRP — Delrin, tapped
• DRP-C — Delrin, counter-bored
• SRP — Steel, tapped
• SRP-C — Steel, counter-bored

Available part options

• 100822 | CSRP-405-C | D 3/8 in | H 1/2 in | H1 3/16 in | F x 30° .03 in | C'bore for SHCS: #6 SHCS
• 100799 | CSRP-40-C | D 3/8 in | H 3/8 in | H1 3/16 in | F x 30° .03 in | C'bore for SHCS: #6 SHCS
• 100830 | CSRP-50-C | D 1/2 in | H 3/8 in | H1 7/32 in | F x 30° .03 in | C'bore for SHCS: #8 SHCS
• 100840 | CSRP-53-C | D 1/2 in | H 1/2 in | H1 7/32 in | F x 30° .03 in | C'bore for SHCS: #8 SHCS
• 100870 | CSRP-625-C | D 5/8 in | H 1/2 in | H1 7/32 in | F x 30° .03 in | C'bore for SHCS: #8 SHCS
• 100849 | CSRP-62-C | D 5/8 in | H 3/8 in | H1 7/32 in | F x 30° .03 in | C'bore for SHCS: #8 SHCS
• 100907 | CSRP-755-C | D 3/4 in | H 1/2 in | H1 1/4 in | F x 30° .03 in | C'bore for SHCS: #10 SHCS
• 100884 | CSRP-75-C | D 3/4 in | H 3/8 in | H1 1/4 in | F x 30° .03 in | C'bore for SHCS: #10 SHCS
• 100975 | CSRP-815-C | D 1 in | H 1/2 in | H1 9/32 in | F x 30° .03 in | C'bore for SHCS: 1/4 in SHCS
• 100937 | CSRP-81-C | D 1 in | H 3/8 in | H1 9/32 in | F x 30° .03 in | C'bore for SHCS: 1/4 in SHCS

Ordering / selection options

• Overall diameter options (in): 3/8, 1/2, 5/8, 3/4, 1
• Overall height options (in): 1/2, 3/8
• Mounting: counter-bored front mounting for SHCS (C'bore) or tapped mounting

Technical specifications

• Material: 17-4 stainless steel (this CSRP-C variant)
• Heat treatment: Rockwell hardness Rc 43/46
• Mounting feature: counter-bored hole for front mounting with SHCS; C'bore corresponds to recommended SHCS size per part
• Tolerances: D +.000/-.005 in; H ±.001 in
• Dimensions H1, F x 30° and C'bore details provided per part variant (see part options)
• Available finishes and tips: tapped or counter-bored mount, Delrin, steel, stainless, carbide tipped
