Threaded insert CT series

steelcarbidetipped

Description
Constructed with a serrated carbide gripper pad brazed to a heat-treated alloy steel body. Grippers are angled at 15° to fit Woodworth, Maxi-Grip, and Ultra-Grip rocker style chucks. Thru-hole tap.

Product Types
CT Gripper Inserts — Angle, carbide tipped. Available tooth patterns: Fine, 4-Point, Straight, Angular.

Available Parts Table
Headers: ID | SKU | Part Number | Thread | L (in) | L1 (in) | W (in) | W1 (in) | H (in) | V Degrees | F x 45° (in) | Tooth Pattern

• 100713 | CT-127-12 | CT-127-12 | #10-32 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Fine
• 100718 | CT-127-4 | CT-127-4 | #10-32 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | 4 Point
• 100721 | CT-130-4 | CT-130-4 | #10-32 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Straight
• 100726 | CT-145-5 | CT-145-5 | #10-32 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Angular
• 100732 | MCT-127-12 | MCT-127-12 | M5x0.80 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Fine
• 100733 | MCT-127-4 | MCT-127-4 | M5x0.80 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | 4 Point
• 100742 | MCT-130-4 | MCT-130-4 | M5x0.80 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Straight
• 100744 | MCT-145-5 | MCT-145-5 | M5x0.80 | .65 | .60 | 9/16 | 15/32 | 3/8 | 15 | .03 | Angular

Media

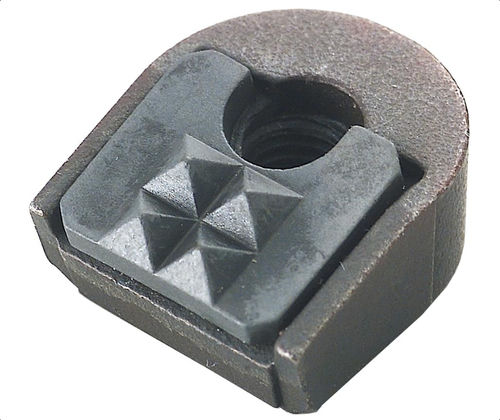

Technical data sheet (PDF) available and product photo titled "CT-ANGLE - carbide tipped angle grip".

Characteristics / Technical specifications

• Serrated carbide gripper pad brazed to a heat-treated alloy steel body
• Gripper angle: 15° to fit Woodworth, Maxi-Grip, and Ultra-Grip rocker style chucks
• Thru-hole tap
• Available tooth patterns: Fine, 4 Point, Straight, Angular
• Available threads: #10-32 (inch) and M5x0.80 (metric)
• Common dimensions (example): L .65 in, L1 .60 in, W 9/16 in, W1 15/32 in, H 3/8 in, V 15°
• Multiple part numbers/variants: CT-127-12, CT-127-4, CT-130-4, CT-145-5, MCT-127-12, MCT-127-4, MCT-130-4, MCT-145-5
