Insert with spike attachments TG-ALU

self-anchoringcarbidecustom

Product description

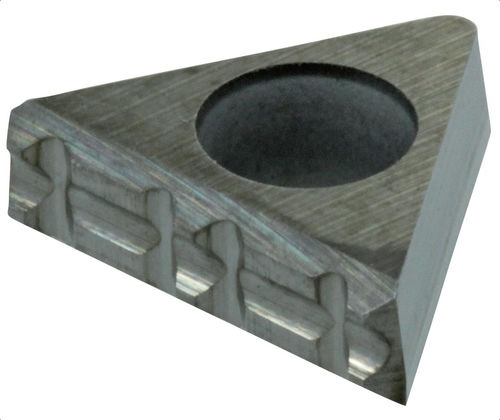

TG GripSerts workholding inserts are designed to secure aluminum workpieces for high-precision machining, including 5-axis operations. The inserts require only 3.5 mm of clamp surface to hold the workpiece and their geometry creates a pull-down effect that prevents lifting during clamping. Made from tough-coated cemented carbide with specialized triangular teeth, TG GripSerts are engineered to penetrate aluminum efficiently.

Product types

• TG-ALU — GripSert for aluminum workpieces
• TG-STD — GripSert for steel workpieces
• TG-HRC — GripSert for hardened steel / titanium workpieces

Part details (table)
ID: 133942
SKU / Part Number: TG-ALU
L (Overall Length mm): 10.69
L1 (between Centers Length mm): 1.80
L2 (Contact Surface Length mm): 0.41
L3 (Clamping Surface - Lower Step Length mm): 1.88
L4 (between Center Points Length mm): 2.86
W (Overall Width mm): 3.18
W1 (Clamping Surface Depth mm): 0.19
W2 (Contact Surface Width mm): 0.62
H (Overall Height mm): 0.30
V (Clamping Surface Notch Angle Degrees): 70
V1 (Tooth Angle Degrees): 40
V2 (Notch Angle Degrees): 30
V3 (Degrees): 70
V4 (Degrees): 5

Technical specifications

• Material: tough-coated cemented carbide (insert)
• Designed for: aluminum workpieces
• Clamp surface needed: 3.5 mm
• Shape: triangular with 5-degree tapering and specialized teeth geometry
• Function: creates pull-down effect preventing lifting of the workpiece while clamping
• Advantages: absorbs and dampens vibrations; secure holding at lower clamping forces to prevent deformation; higher cutting rates and reduced material waste compared with traditional clamping systems
• Packaging: sold in packs of 10
• Part number / model: TG-ALU
