Threaded insert MCT series

steelcarbidesquare

Product overview

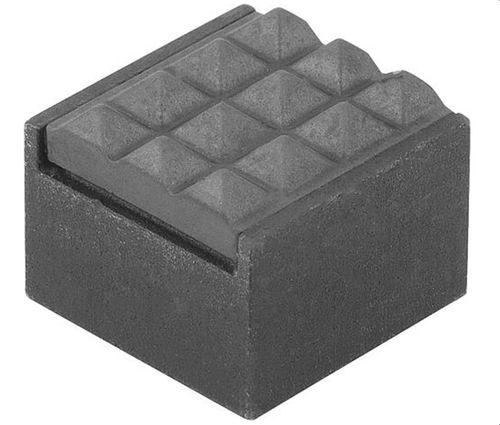

Blind-hole tap designed for back-side mounting. Constructed with a serrated carbide gripper pad brazed to a heat-treated alloy steel body. Suitable for precise clamping and threaded attachment in blind mounting applications.

Product types

• MCT — Gripper Inserts — Square, carbide tipped, diamond serration, tapped (metric)

Parts table
ID | SKU | Part Number | Thread (mm) | L (mm) +0/-0.13 | L1 (mm) | W (mm) +0/-0.13 | W1 (mm) | H (mm) +0/-0.13 | F X 45° | Tooth Pattern
100709 | MCT-9120 | MCT-9120 | M5x0.80 | 12 | 6.96 | 12 | 13/32 | 10 | .80 | Fine
100712 | MCT-9122 | MCT-9122 | M5x0.80 | 12 | 8.94 | 12 | 13/32 | 12 | .80 | Fine

Part options

• Overall Height (mm): 10 or 12

Technical specifications

• Mounting: Blind-hole tap for back side mounting (side mounting variant available separately)
• Material: Serrated carbide gripper pad brazed to heat-treated alloy steel body
• Tooth pattern: Fine
• Thread: M5 x 0.80 (metric)
• Available part numbers: MCT-9120, MCT-9122
• Key dimensions: refer to parts table for L, L1, W, W1, H
