Threaded insert CSRP-UR

stainless steelpolyurethaneround

Description

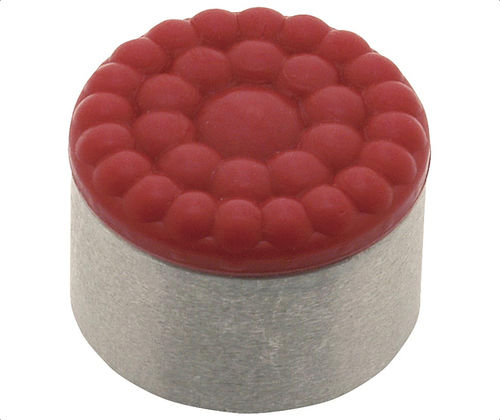

A urethane surface is permanently bonded to a 300 series stainless steel pad. The non-marking, non-staining urethane provides protection for delicate work surfaces and resists abrasion and wear.
The 'bubbled' texture of the urethane top offers firm holding and allows air to escape so no suction is created between the contact surface and the top of the rest pad when compressed.
Urethane tops are available in three Shore A durometers to meet different application requirements. Blind-hole tap is provided for backside mounting. Load compression values are based on the weight required to compress the urethane surface 0.032 in for a 0.08 in thick pad and 0.042 in for a 0.12 in thick pad; values vary with temperature and other environmental factors.

SELECTING A DUROMETER

• 35 Durometer: for very light-duty applications. Hardness similar to a soft pencil eraser; may tear under shear.
• 60 Durometer: for medium-duty applications. Hardness comparable to an automobile tire; good balance of grip and durability.
• 80 Durometer: for heavy-duty applications. Hardness similar to the heel of a dress shoe; high resistance to tearing and abrasion.

Part Options
ID | SKU | Part Number | Thread | D (in) | D1 (in) | L (in) | H (in) | F x 45° (in) | Durometer (Shore A) | Color | Urethane Thickness (in) | Load Compression (lbs)
100956 | CSRP-305-35UR | CSRP-305-35UR | #8-32 | 0.315 | 5/16 | 1/4 | 1/2 | 0.03 | 35 | Yellow | 0.08 | 10
100957 | CSRP-305-60UR | CSRP-305-60UR | #8-32 | 0.315 | 5/16 | 1/4 | 1/2 | 0.03 | 60 | Blue | 0.08 | 30
100965 | CSRP-305-80UR | CSRP-305-80UR | #8-32 | 0.315 | 5/16 | 1/4 | 1/2 | 0.03 | 80 | Red | 0.08 | 45
100972 | CSRP-405-35UR | CSRP-405-35UR | #10-32 | 0.394 | 3/8 | 1/4 | 1/2 | 0.03 | 35 | Yellow | 0.08 | 12
100990 | CSRP-405-60UR | CSRP-405-60UR | #10-32 | 0.394 | 3/8 | 1/4 | 1/2 | 0.03 | 60 | Blue | 0.08 | 35
100992 | CSRP-405-80UR | CSRP-405-80UR | #10-32 | 0.394 | 3/8 | 1/4 | 1/2 | 0.03 | 80 | Red | 0.08 | 90
101012 | CSRP-53-60UR | CSRP-53-60UR | #10-32 | 0.512 | 1/2 | 1/4 | 1/2 | 0.03 | 60 | Blue | 0.08 | 75
101017 | CSRP-53-80UR | CSRP-53-80UR | #10-32 | 0.512 | 1/2 | 1/4 | 1/2 | 0.03 | 80 | Red | 0.08 | 190
101021 | CSRP-625-35UR | CSRP-625-35UR | 1/4-28 | 0.630 | 5/8 | 1/4 | 1/2 | 0.03 | 35 | Yellow | 0.08 | 80
101027 | CSRP-625-60UR | CSRP-625-60UR | 1/4-28 | 0.630 | 5/8 | 1/4 | 1/2 | 0.03 | 60 | Blue | 0.08 | 160

Notes
Blind-hole tap for backside mounting. Load compression figures correspond to the weight required to compress the urethane surface 0.032 in for the 0.08 in pad and 0.042 in for the 0.12 in pad. Ratings are affected by temperature and other environmental conditions.

Technical specifications

• Model: CSRP-UR
• Product family / type: Gripper inserts (round)
• Shape: Round
• Base material: 300 series stainless steel pad
• Surface: SofTop® urethane permanently bonded to stainless steel
• Surface texture: 'bubbled' urethane top to allow air escape and prevent suction
• Mounting: blind-hole tap for backside mounting (tapped)
• Available threads / example diameters: #8-32 (0.315 in), #10-32 (0.394 in / 0.512 in), 1/4-28 (0.630 in)
• Available overall diameters shown: 5/16, 3/8, 1/2, 5/8 (in)
• Available durometers: 35, 60, 80 Shore A (color coded)
• Color code: 35 = Yellow, 60 = Blue, 80 = Red
• Typical urethane thickness: 0.08 in (examples in table)
• Load compression: per-SKU values listed in Part Options (lbs)
• Applications: protect delicate surfaces, non-marking contact, abrasion-resistant gripping surface

Applications

• Protection of delicate work surfaces and finished parts during handling and assembly
• Non-marking contact points for fixtures, rests and support pads
• Replacement or upgrade for metal-only pads where grip and surface protection are required
