Threaded insert MCT series
steelcarbideround

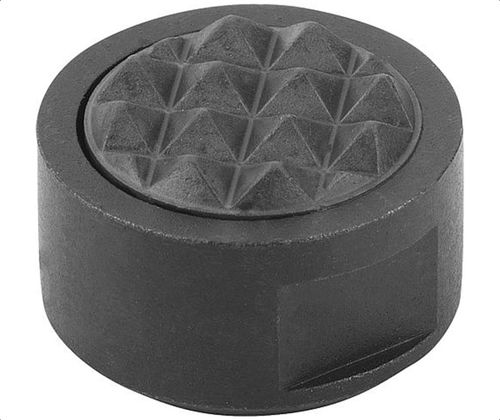

Threaded insert - MCT series - Fixtureworks - steel / carbide / round
Threaded insert - MCT series - Fixtureworks - steel / carbide / round
Threaded insert - MCT series - Fixtureworks - steel / carbide / round - image - 2
Add to favorites
Compare this product
Go to the Fixtureworks website for more information

Characteristics

Type
threaded
Material
steel, carbide
Configuration
round
Applications
for metal
Internal diameter

Min.: 7.94 mm
(0.31 in)

Max.: 19.05 mm
(0.75 in)

External diameter

Min.: 10 mm
(0.39 in)

Max.: 25 mm
(0.98 in)

Length

Min.: 6.83 mm
(0.27 in)

Max.: 8.83 mm
(0.35 in)

Description

Product description
Serrated carbide gripper pad is brazed to a heat-treated alloy steel body. Blind-hole tap for backside mounting and a flat on the outer diameter for setscrew mounting ensure secure installation and repeatable positioning.

Part options
  • MCT-100 — Thread: M5x0.80; D: 10 mm; D1: 5/16; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; Tooth Pattern: EF
  • MCT-102 — Thread: M5x0.80; D: 10 mm; D1: 5/16; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; Tooth Pattern: EF
  • MCT-120 — Thread: M5x0.80; D: 12 mm; D1: 3/8; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-122 — Thread: M5x0.80; D: 12 mm; D1: 3/8; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-160 — Thread: M6x1.00; D: 16 mm; D1: 1/2; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-162 — Thread: M6x1.00; D: 16 mm; D1: 1/2; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-200 — Thread: M6x1.00; D: 20 mm; D1: 5/8; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-202 — Thread: M6x1.00; D: 20 mm; D1: 5/8; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-250 — Thread: M6x1.00; D: 25 mm; D1: 3/4; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; Tooth Pattern: Fine
  • MCT-252 — Thread: M6x1.00; D: 25 mm; D1: 3/4; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; Tooth Pattern: Fine


Technical specifications
  • Construction: Serrated carbide gripper pad brazed to a heat-treated alloy steel body
  • Mounting: Blind-hole tap for backside mounting; flat on OD for setscrew mounting
  • Series: MCT series
  • Tooth patterns available: EF and Fine
  • Available thread sizes: M5x0.80 and M6x1.00
  • Available part numbers / sizes: MCT-100, MCT-102, MCT-120, MCT-122, MCT-160, MCT-162, MCT-200, MCT-202, MCT-250, MCT-252


Applications
  • Workholding, fixtures, end-of-arm tooling and other industrial clamping applications requiring precision bite and repeatable mounting

Catalogs

No catalogs are available for this product.

See all of Fixtureworks‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Fabtech 2026
Fabtech 2026

21-23 Oct 2026 Las Vegas (USA - Nevada) Stand C2348

  • More information
    Go to the Fixtureworks website for more information
