Threaded insert FSC

steelsolid carbide

Overview
Solid carbide gripper inserts designed for high-wear, high-load holding applications. Serrated faces provide positive holding; available tooth patterns: Fine, 4-Point, Straight and Angular. Inserts are angled at 15° to fit Woodworth, Maxi-Grip and Ultra-Grip rocker-style chucks. Thru-hole tapped; inch and metric thread options available.

Product types

• ID 100881 — Part FSC-127-10 — Thread #10-32 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Fine
• ID 100883 — Part FSC-127-4 — Thread #10-32 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: 4-Point
• ID 100915 — Part FSC-130-4 — Thread #10-32 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Straight
• ID 100921 — Part FSC-145-5 — Thread #10-32 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Angular
• ID 100924 — Part MFSC-127-10 — Thread M5x0.8 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Fine
• ID 100927 — Part MFSC-127-4 — Thread M5x0.8 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: 4-Point
• ID 100941 — Part MFSC-130-4 — Thread M5x0.8 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Straight
• ID 100948 — Part MFSC-145-5 — Thread M5x0.8 — L .65 in — L1 .60 in — W 9/16 in — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Angular
• ID 100891 — Part FSC-127-4-10MM — Thread #10-32 — L .65 in — L1 .60 in — W .39 in (10 mm) — H 3/8 in — V 15° — F x 45° .03 in — Tooth: 4-Point
• ID 100905 — Part FSC-130-2-10MM — Thread #10-32 — L .65 in — L1 .60 in — W .39 in (10 mm) — H 3/8 in — V 15° — F x 45° .03 in — Tooth: Straight

Media (available)

• Gripper Technical Information (PDF)

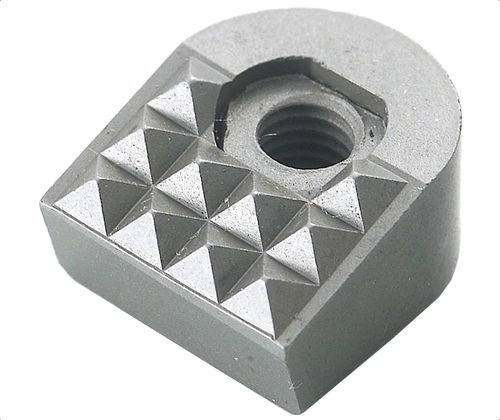

• Product photo: FSC-ANGLE GRIP - solid carbide with steel threaded insert

Technical specifications

• Series / Commercial designation: FSC
• Material: Solid carbide (for high wear and high load applications)
• Serration: Serrated for positive holding; available tooth patterns: Fine, 4-Point, Straight, Angular
• Angle: 15° (designed to fit Woodworth, Maxi-Grip and Ultra-Grip rocker-style chucks)
• Tapping: Thru-hole tap (inch and metric tapped variants available)
• Thread options: #10-32 (inch) and M5x0.8 (metric)
• Typical dimensions (inch unless noted): L = .65, L1 = .60, H = 3/8, F x 45° = .03
• Width options: 9/16 in or .39 in (10 mm) for metric variants
• Part number examples: FSC-127-10, FSC-127-4, FSC-130-4, FSC-145-5, MFSC-127-10, MFSC-127-4, MFSC-130-4, MFSC-145-5, FSC-127-4-10MM, FSC-130-2-10MM
• Typical use: Gripper inserts for rocker-style chucks in demanding holding applications
