Threaded insert FSC series

solid carbidesquare

Description
Solid carbide inserts designed for high-wear, high-load workholding applications. Diamond serration provides positive grip on demanding workpieces. Blind-hole tapped mounting enables secure back- or side-mounting for flexible fixture integration.

Product types

• FSC-870 (ID 100861): Thread #10-32, L = 1/2 in, L1 = 3/16 in, W = 1/2 in, H = 3/8 in, F X 45° = 0.03 in, Tooth Pattern = Fine
• FSC-875 (ID 100869): Thread #10-32, L = 1/2 in, L1 = 5/16 in, W = 1/2 in, H = 1/2 in, F X 45° = 0.03 in, Tooth Pattern = Fine

Media

• Gripper Technical Information (PDF)

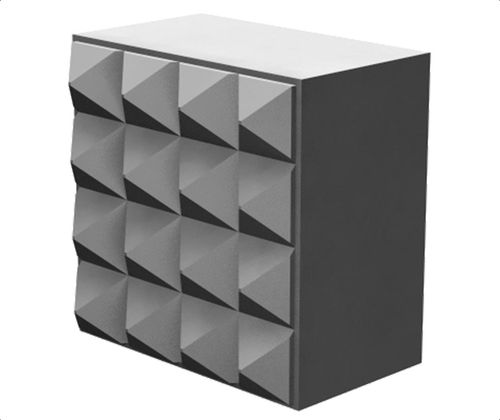

• FSC-SQUARE - solid carbide with steel threaded insert (product photo)

Characteristics / technical specifications

• Material: Solid carbide (suitable for high wear and high load applications)
• Shape: Square gripper insert
• Serration: Diamond serration (fine tooth pattern)
• Mounting: Blind-hole tap for back/side mounting
• Finish / Feature: Serrated for positive holding in tough applications
• Available part numbers and key dimensions:
  • FSC-870 (ID 100861): Thread #10-32, L = 1/2 in, L1 = 3/16 in, W = 1/2 in, H = 3/8 in, F X 45° = 0.03 in, Tooth Pattern = Fine
  • FSC-875 (ID 100869): Thread #10-32, L = 1/2 in, L1 = 5/16 in, W = 1/2 in, H = 1/2 in, F X 45° = 0.03 in, Tooth Pattern = Fine
• Typical applications: workholding where high wear resistance and positive grip are required
