Description

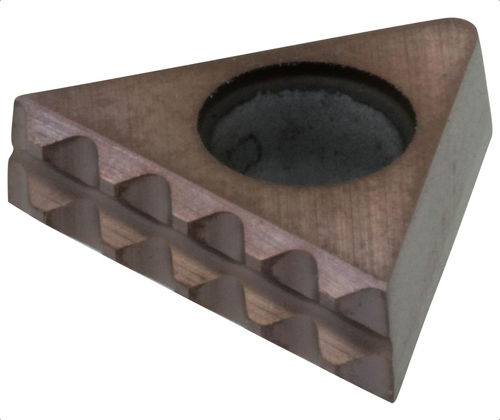

TG GripSerts TG-HRC are workholding gripper inserts engineered to clamp hardened steel and titanium components (up to 50–54 HRC). Requiring only 3.5 mm of clamp surface to secure the workpiece, these inserts are optimized for 5-axis machining where minimal clamping footprint and high stability are critical. The triangular geometry and specialized tooth profile produce a pull-down effect that prevents lifting during clamping.

Product Types

• TG-ALU — GripSert for aluminum workpieces
• TG-STD — GripSert for steel workpieces
• TG-HRC — GripSert for hardened steel/titanium workpieces

Part Options / Table (excerpt)
Header: Detail | ID | SKU | Part Number | L (mm) | L1 (mm) | L2 (mm) | W (mm) | W1 (mm) | H (mm) | H1 (mm) | V Degrees | V1 Degrees | V2 Degrees | V3 Degrees | V4 Degrees | PN
Row: 133941 | TG-HRC | TG-HRC | TG-HRC | 10.81 | 2.05 | 0.40 | 3.18 | 0.30 | 0.59 | 0.39 | 90 | 40 | 30 | 70 | 5 | (Set of 10)

Media

• TG GripSert Workholding Grippers Information (PDF)

Technical specifications

• Model: TG-HRC (Carbide inserts - for hardened steel/titanium - set of 10)
• Material capability: hardened steel / titanium up to 50–54 HRC
• Clamp surface required: 3.5 mm
• Geometry: triangular shape with 5° taper and specialized teeth to penetrate hardened materials
• Function: creates pull-down effect to prevent lifting during clamping; absorbs and dampens vibrations
• Advantages: secure holding with lower clamping forces, prevents deformation, enables higher cutting rates and reduces material waste
• Packaging: sold in packs of 10
• Part dimensions (TG-HRC): L 10.81 mm; L1 2.05 mm; L2 0.40 mm; W 3.18 mm; W1 0.30 mm; H 0.59 mm; H1 0.39 mm
• Angles: Clamping surface notch 90°; Tooth angle 40°; Notch angle 30°; Notch in clamp surface 70°; Taper angle 5°
