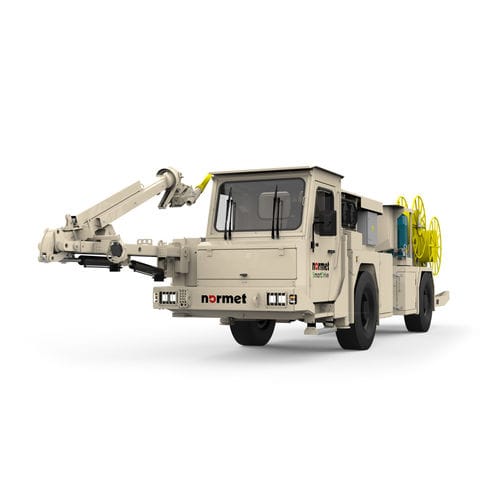

Concrete spraying machine SPRAYMEC MF 050 VC SD

electricbattery-powered

Spraymec MF 050 VC SD is a dedicated concrete sprayer, purpose-built for modern mining operations in small and medium-sized tunnels. Combining our Normet SmartDrive® battery-electric architecture with a state-of-the-art spraying system, the MF 050 SD offers unrivalled concrete spraying results, superior operator ergonomics and excellent serviceability – with zero local emissions. It comes with a cutting-edge dosing system and our revolutionary low-pulsation concrete spraying pump with a maximum theoretical concrete output capacity of 10.5 m3 with battery-powered operation or, alternatively, 27 m3/h with electric operation. With the MF 050 VC SD, productive concrete spraying is possible from both inside the redesigned FOPS/ROPS certified safety cabin with ergonomic control features and outside of it with a wireless remote controller. Equipped with a high-volume on-board compressor and an extremely durable and accurate spraying boom with strengthened structures, superb rebound protection and outstanding maneuverability, the MF 050 VC SD pioneers the transformation into tomorrow’s mining operations. Key specification Max. vertical reach: 9.5 m Tramming height: 2.9 m Features Safety FOPS/ROPS approved cabin Cabin door interlock switch with safety brake application as standard Reversing camera system for improved reversing visibility Optional methane monitoring system SAHR fail-safe safety brakes No diesel fumes or hot exhaust gases Almost no surface heat Sustainability Zero local emissions Decreased ventilation need Ergonomics and operator environment Completely redesigned cabin designed with ergonomics and safety as the priority
