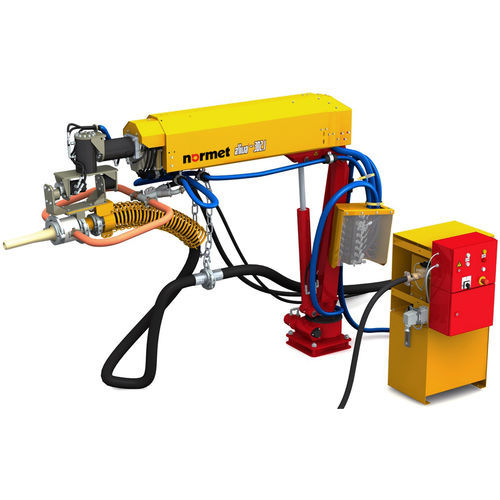

Mobile spray unit ALIVA 302.1

hydraulicmodular

Overview
The Aliva 302.1 spraying arm is designed for shotcrete application in mines and confined tunnels. Its modular and adaptable structure allows reduction of overall height where space is limited, enabling safe and efficient lining, repair and reinforcement operations.

Key specifications

• Spraying arm for mining and small tunnels
• Modular concept for reduced-height configurations
• Easy mounting on carrier vehicle; mounting screws included
• Spraying reach: 2 - 9 m

Features

• Remote control with 15 m cable
• Optional radio remote control
• Hydraulic power unit
• Valve block for flow control
• Included mounting screws

Benefits

• Improves worker safety by reducing need for manual access in confined spaces
• Increases on-site productivity and spraying speed
• Eliminates the need for scaffolding or scissor lifts during shotcreting
• Adjustable configuration to match project constraints

Technical specifications

• Model: Aliva 302.1
• Application: Spraying arm for mines and confined tunnels
• Design: Modular, adaptable for custom height reduction
• Mounting: Easy mounting on carrier vehicle; mounting screws included
• Control: Remote control with 15 m cable; optional radio remote
• Power: Hydraulic power unit
• Hydraulics/flow control: Valve block included
• Spraying reach: 2 - 9 m
