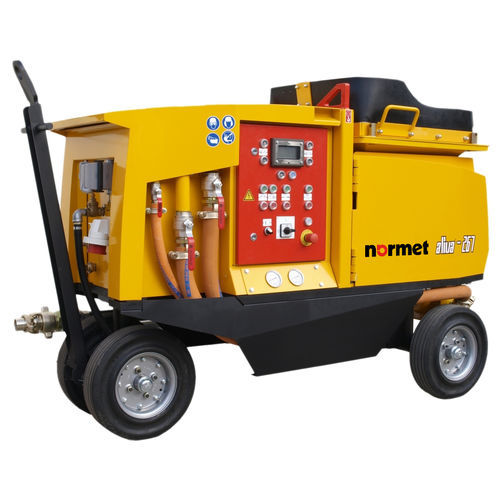

Concrete spraying machine ALIVA 267

spraycompact

Overview
The Aliva 267 is a modular concrete spraying machine for dry and wet conveying. Its modular construction allows adaptation of integrated components to specific jobsite requirements. With an output capacity from 4 to 21 m3/h, it covers a wide range of spraying and repair applications while offering configurable dosing and speed control options.

Key specification

• Compact concrete spraying machine for dry and wet conveying
• Output capacity: 4 – 21 m3/h

Features

• Rotor chamber ventilation
• Automatic lubrication system
• Stepless speed adjustment (Top Plus version)
• Integrated dosing unit (Advanced Plus)
• Integrated and synchronized dosing unit (Top Plus version)
• Vibrating hopper
• Emergency stop that also cuts off the air

Benefits

• Suitable for continuous availability with oven‑dry mixes
• Easy handling, cleaning and low maintenance
• Operable with basic mechanical skills and limited electrical knowledge
• Long conveying distances: up to 300 m horizontally and 100 m vertically (with pipes)
• Wide output range from a single machine
• Performs well on jobsites with frequent interruptions
• Uses lighter, less rigid and less expensive hoses
• Requires less cement/fines than pumpable concrete
• Less sensitive to oversize aggregates or mix variability

Characteristics / Technical specifications

• Model: Aliva 267
• Modular construction enabling adaptable integrated components
• Conveying modes: dry and wet
• Output capacity: 4 - 21 m3/h
• Rotor chamber ventilation
• Automatic lubrication
• Speed control: stepless adjustment available (Top Plus version)
• Dosing options: integrated dosing unit (Advanced Plus); integrated & synchronized dosing (Top Plus)
• Vibrating hopper included
• Emergency stop cuts off air supply
• Horizontal conveying distance: up to 300 m (with pipes)
• Vertical conveying distance: up to 100 m (with pipes)
• Designed for easy handling, cleaning and low maintenance
• Suitable for applications requiring continuous availability (oven‑dry mix)
