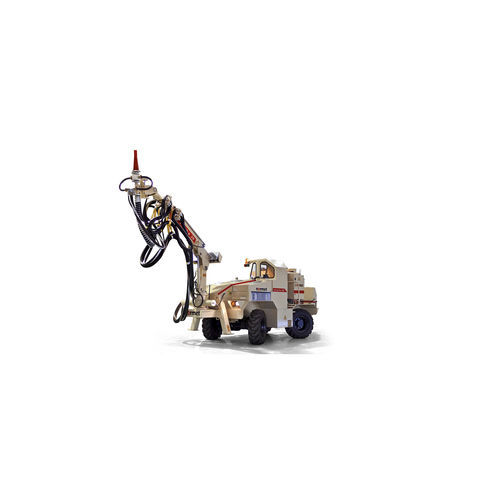

Mobile concrete pump ALPHA 20

for tunnelfor underground miningfor construction

Overview
Alpha 20 is a diesel-hydraulic wet-mix concrete sprayer designed for tunnelling profiles up to 5 m in height and 5 m in width. It is engineered for reliable operation, simplified maintenance and straightforward servicing. The machine features a purpose-built agile boom and a BS7622 concrete pump with a theoretical maximum capacity of 20 m3/h. The accelerator dosing uses a hydraulically driven peristaltic pump paired with a 350 L stainless steel additive tank. An optional radio remote control enables safe, accurate operation of all spraying functions from a distance. Four-wheel steering and 4WD support manoeuvring in confined or difficult underground conditions. The power unit is a 120 kW Tier 3 engine and the operator is protected by a FOPS/ROPS safety cabin.

Key specification

• Rigid frame tunnelling sprayer
• Max. vertical reach: 7 m
• Concrete pump output: Up to 20 m3/h (theoretical)
• Tramming height: 2.6 m

Features
Safety

• SAHR fail-safe safety brakes

Ergonomics and operator environment

• Suspended driver’s seat for improved operator comfort during transport and operation

Productivity and efficiency

• Agile spray boom with automatic nozzle rotation for precise application
• High-capacity BS7622 concrete pump (up to 20 m3/h)
• Radio remote control system for accelerator dosing, accelerator pump and nozzle rotation on/off, concrete pump on/off/reverse
• Accelerator dosing system with hydraulically driven peristaltic pump (7 bar) and 350 L stainless steel additive tank
• Optional high-pressure washer

Note
The Normet offering includes equipment for concrete spraying and transport, construction chemicals and aftermarket support for both underground and surface mining and tunnelling applications.

Technical specifications

• Type: Diesel-hydraulic wet-mix concrete sprayer for tunnelling
• Application: Tunnel profiles up to 5 m height × 5 m width
• Concrete pump: BS7622 concrete pump
• Maximum concrete pump output: Up to 20 m3/h (theoretical)
• Accelerator dosing: Hydraulically driven peristaltic pump, 7 bar
• Accelerator/additive tank: 350 L stainless steel
• Boom: Purpose-built agile spray boom with automatic nozzle rotation
• Remote control: Optional radio remote for accelerator dosing, accelerator pump, nozzle rotation and concrete pump control (on/off/reverse)
• Steering: Four-wheel steering
• Drive: 4WD
• Engine: 120 kW Tier 3
• Cabin: FOPS/ROPS safety cabin
• Max. vertical reach: 7 m
• Tramming height: 2.6 m
• Frame: Rigid frame tunnelling sprayer
• Optional equipment: High-pressure washer
