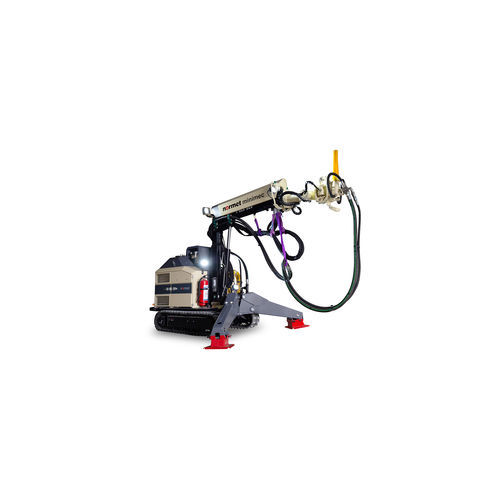

Concrete spraying machine MINIMEC

diesel enginehydraulic

Overview
Minimec is a compact mobile concrete spraying unit designed for safe, precise shotcreting in confined or complex job sites. The system pairs a highly maneuverable carrier with an accurate spray manipulator and is offered as the standard Minimec (7.5 m vertical reach) or Minimec L (8.5 m vertical reach). The unit is driven by a Stage V / Tier 4 diesel engine (low noise) with optional 11 kW electric power pack.

Key specification

• Mobile concrete spraying unit
• Max. vertical reach: 7.5 m (Minimec) / 8.5 m (Minimec L)
• Tramming height: 2.3 m

Features
Safety

• Spring-applied brakes for secure parking
• Hydraulic support legs with additional foot blocks for maximum operating stability

Ergonomics and operator environment

• Radio remote-control system with two joysticks for precise boom and nozzle head control
• Optional remote-driving system (RDS)
• Four mechanical levers for track and support leg control

Productivity and efficiency

• Agile spray boom with nozzle nutation and pressure-compensated, proportionally controlled hydraulic movements
• Diesel-powered hydraulic pump for carrier and boom; optional 11 kW electric power pack with hydraulic pump
• Independent drive hub motors enabling turning while stationary for tight spaces
• Six powerful LED lights on boom and carrier for full-area illumination
• Easily accessible central lifting points to simplify handling and service

Availability of documents
Datasheet and technical brochures available in the product documents section.

Technical specifications

• Model: Minimec (standard) or Minimec L (long reach)
• Max. vertical reach: 7.5 m (standard) / 8.5 m (Minimec L)
• Tramming height: 2.3 m
• Power unit: Stage V / Tier 4 diesel engine (low noise)
• Alternative power: 11 kW electric power pack with hydraulic pump (option)
• Drive: independent drive hub motors for turning while stationary
• Stability: hydraulic support legs with additional foot blocks
• Control: radio remote-control with two joysticks; optional RDS
• Boom: agile spray boom with nozzle nutation and pressure-compensated proportional hydraulics
• Spray head: field-tested, accurate and maneuverable spray head
• Lighting: six LED work lights on boom and carrier
• Safety: spring-applied brakes
• Serviceability: central, easily accessible lifting points
