Tunneling vehicle SPRAYMEC NORRUNNER 140 DVC

electrictracked

Overview

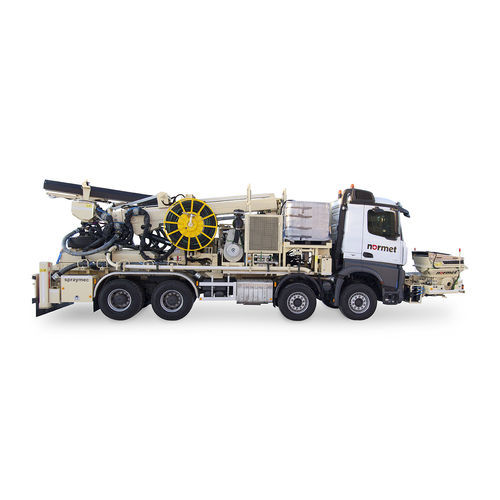

Spraymec NorRunner 140 DVC is a truck-based, road-legal tunnelling concrete sprayer designed for medium to large tunnel profiles. The unit can operate with a diesel engine and an electro-hydraulic power pack or, alternatively, connected to mains power for local zero-emission operation. Key spraying components include a synchronized accelerator dosing system and a low-pulsation NSP 30 concrete pump with independent conveying cylinder control integrated into a closed-loop control system. The machine is fitted with a precision spray manipulator, on-board compressor and automatic conveying line and nozzle washing to minimise blockages in harsh underground conditions.

Additional overview notes
Optional automation and measurement packages are available: the SmartSpray system for spraying automation and the SmartScan system for concrete thickness measurement. The NorRunner 140 DVC is offered as part of a complete sprayed concrete solution including transport equipment, construction chemicals and supporting services.

Key specification

• Truck-based tunnelling sprayer
• Maximum horizontal coverage: up to 28 m
• Maximum vertical reach: up to 19.5 m
• Concrete pump output: up to 30 m3/h (NSP 30)
• Tramming height: 3.8 m

Features

• Reversing camera for improved rear visibility
• Ergonomic operator environment and controls
• Agile, accurate spray boom with vertical and horizontal tracking
• Automatic movement of the upper boom telescope and nozzle rotation
• Excellent rebound protection and proportionally controlled, pressure-regulated hydraulic movements
• Prepared for Normet SmartSpray automation
• Compatible with Normet SmartScan thickness measurement
• Low-pulsation NSP 30 spray pump (up to 30 m3/h) with reversing function
• Accelerator system with hydraulically driven pump (12 bar) and 1000 l accelerator tank (option for second 1000 l tank)
• Accelerator dosing fully synchronised with concrete delivery
• Remote Driving System (ReCoDrive) for remote machine relocation
• Hydraulically driven rotary vane compressor with selectable flow rates (8 / 10 / 13.8 m3/min)
• 55 kW electro-hydraulic power pack for boom, pump, S-tube and dosing
• Advanced wired or wireless remote control with 2/4 joysticks (optional bridging cable)
• High-pressure washer and 1000 l stainless steel water tank for cleaning and pre-wetting
• Hydraulically driven water hose reel
• Automatic lubrication for pump and boom
• Automatic concrete line and nozzle washing system with protective hopper cover
• Form oil system included
• Extendable hydraulic rear support legs
• Anti-freeze tank (300 l)
• Water booster pump and hydraulic oil filling pump
• On-board storage box for tools and spare parts (tool set included)
• Optional spraying conditions monitoring system
• Optional heating kit and optional electrically operated mixer for accelerator tank
• Optional bypass filter kit for oil circuit

Notes on reach and coverage
Overview references a maximum horizontal coverage of 28 m and a maximum vertical reach around 19–19.5 m; the key specification lists 19.5 m as the maximum vertical reach.

Technical specifications

• Product type: Truck-based, road-legal tunnelling concrete sprayer
• Model: NorRunner 140 DVC
• Maximum horizontal coverage: 28 m (overview)
• Maximum vertical coverage / reach: 19 m (overview) and 19.5 m (key specification)
• Concrete pump: NSP 30, low-pulsation, reversing function, up to 30 m3/h
• Tramming height: 3.8 m
• Power pack: 55 kW electro-hydraulic power pack
• Accelerator system: hydraulically driven pump (12 bar), 1000 l tank (optional second 1000 l)
• Compressor: hydraulically driven rotary vane, selectable 8 / 10 / 13.8 m3/min
• Water tank: 1000 l stainless steel for high-pressure washer
• Anti-freeze tank: 300 l
• Automatic concrete line and nozzle washing
• Remote Driving System (ReCoDrive) and advanced remote control options
• Optional systems: SmartSpray (automation), SmartScan (thickness measurement)
• On-board storage and tool set included
