Concrete spraying machine ALIVA 201

pneumaticcompactautomatic

Overview

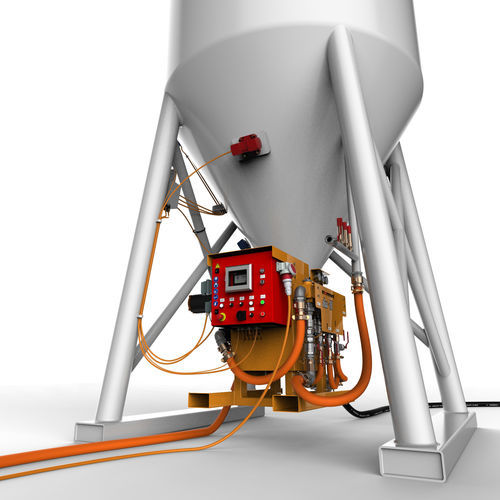

The Aliva 201 is a compact solution tailored for concrete repair in pressure silos. Its straightforward and swift installation directly onto the silo gate ensures convenience and a dust- and pulsation-free material conveying experience. With fast and easy mounting, coupled with an infinitely variable conveying capacity, it is a reliable choice for efficient operations.

Key specification

• Compact concrete spraying machine for dry conveying
• Output from 2 to 5 m3/h
• Simple mounting and fast installation

Features

• Air maintenance unit with filter, drain water separator and pressure regulator
• Control cabinet with display
• Automatic control of silo and conveying air
• Pressure gauge for system, silo and conveying air pressure
• Connection for level sensors, silo gate and vibrator

Benefits

• High flexibility as machines are small and can be moved quickly
• 24/7 availability (oven dry mix)
• Easy handling, cleaning and low maintenance
• Solid mechanical background with limited electric know-how is sufficient
• Long distances horizontally (300 m with pipes) and vertically (100 m with pipes)
• Pneumatic drive possible
• Suitable for concrete repairs
• Great range of output capacity with one machine
• Good on jobsites with many interruptions
• Handy in confined areas
• Lighter, less rigid and cheaper hoses
• Less cement/fines than pumpable concrete
• Less prone to problems with oversizes or mixture

Technical specifications

• Model: Aliva 201
• Application: Pressure silo concrete repair (silo gate mounting)
• Conveying type: Dry conveying (dust- and pulsation-free conveying)
• Conveying capacity: Infinitely variable, nominal output 2–5 m3/h
• Mounting: Simple and fast mounting directly onto silo gate
• Air system: Air maintenance unit with filter, drain water separator and pressure regulator
• Control: Control cabinet with display; automatic control of silo and conveying air
• Instrumentation: Pressure gauges for system, silo and conveying air
• Interfaces: Connections for level sensors, silo gate and vibrator
• Conveying distances: Capable of long horizontal distances (up to 300 m with pipes) and vertical distances (up to 100 m with pipes)
