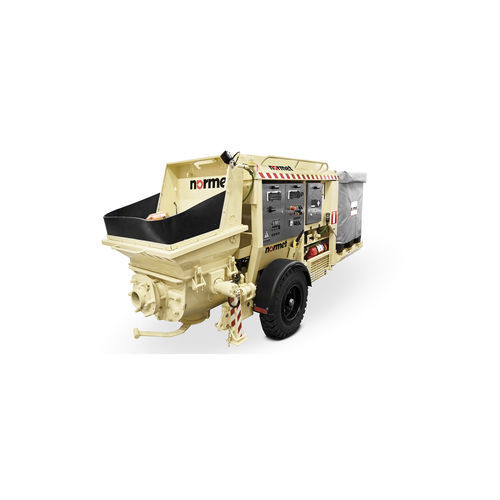

Mobile concrete pump NORSTREAMER 30 V

for tunnelfor constructionfor mining applications

Overview
NorStreamer 30 V is a mobile concrete spraying pump designed for high-quality sprayed concrete application. It incorporates the low-pulsation NSP 30 double-piston pump with a volumetric capacity of 30 m3/h and a fast-switching S-tube for durability and consistent spraying results. The unit is equipped with an accelerator dosing system available with either a peristaltic pump or a progressive cavity pump, both fully synchronized with concrete output via an integrated closed-loop control. A frame extension can accommodate a 1000 l IBC accelerator tank with optional heating and electrically-driven mixing for cold climates. The machine features a reliable hydraulic drive, a special hopper grid with a hydraulically driven agitator, and an advanced control system with wired or radio remote control.

Compatibility & use
The NorStreamer 30 V paired with the Minimec 2 forms a combined solution for mobile, high-quality sprayed concrete applications. Suitable for tunnelling, mining and surface construction, the system supports both manual and mechanized spraying equipment and includes options for chemicals and service support.

Key specification

• Mobile concrete spraying pump
• Volumetric pumping capacity: 30 m3/h
• Tramming height: 1.9 m

Features

• Low-pulsation NSP 30 double-piston pump with S-tube and fast changeover (up to 30 m3/h)
• Double-layer hopper grid with vibrator and hydraulically driven agitator
• Accelerator dosing with peristaltic pump (optional progressive cavity pump)
• Accelerator dosing fully synchronized with concrete delivery via closed-loop control
• Modular trailer frame with adjustable tow bar, adjustable mechanical support legs and 4 top-level lifting points; skid frame option available
• Optional Nordoser XEM accelerator dosing system with screw pump
• Available with heating element kit and electrically-driven accelerator mixing kit for 1000 l IBC
• Optional cable or wireless remote control for pump start/stop/reverse & output
• Optional frame extension / skid extension for 1000 l IBC container
• Optional lifting chains and reducer kit
• Available with manual or mechanized concrete spraying equipment

Safety

• Spring-applied brakes

Operational notes
The machine is designed for configurable deployments and on-site adaptations. Hydraulic system and control architecture ensure stable operation across a range of jobsite conditions; optional accessories allow operation in cold climates and ease integration with existing spraying fleets.

Technical characteristics / specifications

• Pump type: NSP 30 low-pulsation double-piston concrete pump
• Volumetric pumping capacity: 30 m3/h
• S-tube with fast switching for durability
• Accelerator dosing: peristaltic pump or progressive cavity pump; optional Nordoser XEM screw pump
• Accelerator dosing synchronized with concrete delivery via closed-loop control
• Optional frame extension for 1000 l IBC accelerator tank (optional heating and mixing)
• Hydraulic drive: reliable, powerful hydraulic system
• Hopper: special grid with hydraulically driven agitator and double-layer grill with vibrator
• Control: advanced system with wired or radio remote (start/stop/reverse & output)
• Frame: modular trailer frame (adjustable tow bar, mechanical support legs, 4 lifting points) or skid frame option
• Tramming height: 1.9 m
• Recommended pairing: Minimec 2 for mobile sprayed concrete application
