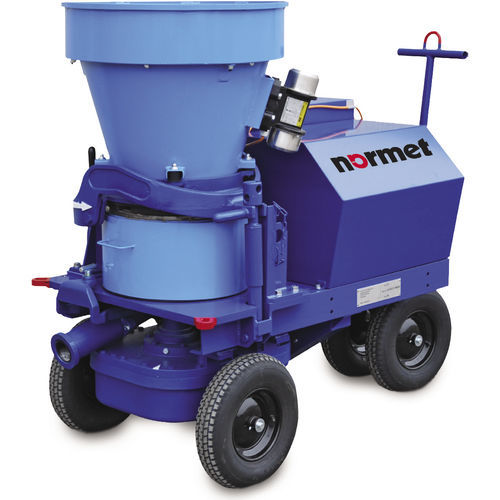

Concrete spraying machine GM

pneumaticcompact

Overview
The Normet GM is a dry mix concrete spraying machine based on the rotor principle. Its proven design provides a compact, easy-to-mobilize unit suitable for medium and large dry mix spraying tasks including concrete repairs, slope protection, working pits, rock support, TBM backup rigs and mine lining works.

Key specification

• Machine type: Dry-mix concrete spraying machine (rotor principle)
• Application scope: Medium and large dry-mix spraying
• Output capacity: 3.5–8 m3/h

Benefits

• Compact unit for rapid relocation on site
• 24/7 availability when using oven-dry mix
• Easy handling and cleaning with low maintenance needs
• Operable with a strong mechanical background and limited electrical know-how
• Conveying distances up to approx. 100 m horizontally and 100 m vertically (with pipes)
• Pneumatic drive option available
• Suitable for concrete repair and intermittent jobsite operations
• Wide output range from a single machine; suitable for confined spaces

Applications

• Repair works of concrete structures
• Slope protection
• Working pits
• Rock support
• Back-up rig on TBMs
• Lining works in mines

Technical specifications

• Principle: Rotor dry-mix spraying
• Output: 3.5–8 m3/h
• Suitable works: Medium and large dry-mix spraying
• Max conveying distance: Approx. 100 m horizontally and 100 m vertically (with pipes)
• Drive options: Pneumatic drive possible
• Availability: 24/7 with oven-dry mix
• Maintenance: Easy handling, cleaning and low maintenance
• Operation: Requires limited electrical know-how; strong mechanical background sufficient
• Designed for confined areas and jobsites with frequent interruptions
