Mobile concrete pump SPRAYMEC 4100

for tunnelundergroundfor mining applications

Overview

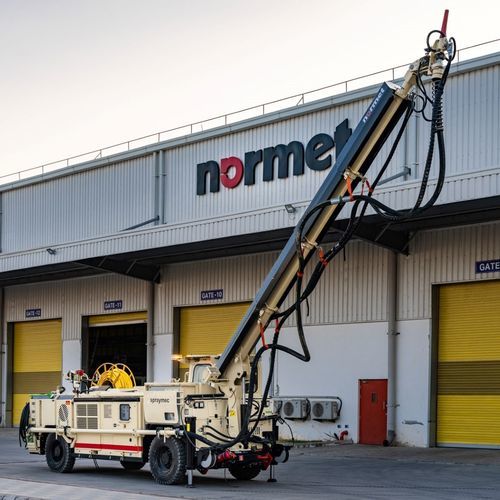

Spraymec 4100 is a self-propelled concrete sprayer engineered for mining and tunnelling projects with small to medium tunnel profiles. It integrates a closed-loop control system, precise accelerator dosing synchronized with concrete delivery, and a low-pulsation NSP 30 double-piston concrete pump for uniform spraying. The agile spray boom provides effective rebound protection and accurate material placement. A high-capacity onboard compressor supports consistent spray quality, while 4-wheel-drive and 4-wheel-steering including crab steering enable superior manoeuvrability in confined working areas. Controls are IP65-rated and connected via CAN bus; maintenance points are centralized to reduce downtime.

Key specification

• Rigid-frame mining and tunnelling sprayer
• Max. vertical reach: 10.5 m
• Concrete pump output: up to 27 m³/h (NSP 30)
• Tramming/transport height: 2.6 m

Features
Safety

• FOPS/ROPS approved cabin
• Cabin door interlock switch with safety brake application as standard
• Reversing camera for improved rear visibility
• SAHR fail-safe safety brakes

Sustainability

• Available with latest low-emission Stage V engine technology

Ergonomics and operator environment

• Cab designed for operator ergonomics and safety
• Suspended driver seat with 3-point seat belt and safety switch
• Optional enclosed cab with air conditioning and heating

Productivity and efficiency

• Pressure-compensated, proportional boom movements for precise spraying
• Optional Normet SmartScan concrete thickness measurement system
• Low-pulsation NSP 30 double-piston concrete pump (up to 27 m³/h) with reversing function and hydraulically driven agitator
• Accelerator dosing fully synchronized with concrete delivery via closed-loop control
• Optional electrically driven screw compressor
• Optional automatic lubrication system for pump, carrier and boom
• Optional form oil system

Technical specifications

• Model: Spraymec 4100
• Max. vertical reach: 10.5 m
• Concrete pump: NSP 30 low-pulsation double-piston pump, up to 27 m³/h
• Accelerator dosing: precise, synchronized with concrete delivery; closed-loop control
• Boom: agile spray boom with rebound protection; pressure-compensated proportional movements
• Compressor: high-capacity onboard compressor (optional electrically driven screw compressor)
• Drive & steering: 4-wheel-drive and 4-wheel-steering including crab steering
• Controls & electronics: IP65-rated controls; CAN bus system
• Cabin & safety: FOPS/ROPS cabin; cabin door interlock; reversing camera; SAHR safety brakes
• Maintenance: centralized maintenance points to maximize uptime
• Tramming/transport height: 2.6 m
