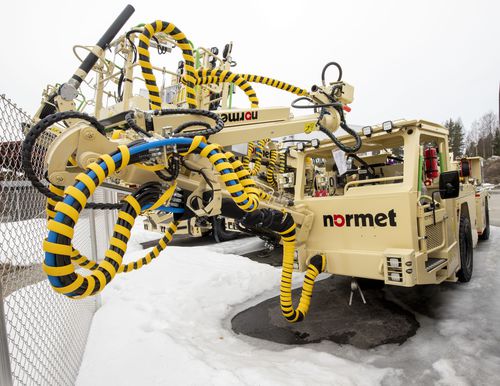

Concrete spraying machine SPRAYMEC SF 050

diesel engineelectrichydraulic

Spraymec SF 050 is a compact and agile concrete sprayer, specifically designed to provide value for modern mining operations with small and medium-sized tunnel profiles and powered either by a diesel engine or by a combination of a diesel engine and an efficient electro-hydraulic power pack. It is equipped with a lot of cutting-edge spraying technology like an unrivalled dosing system and the low-pulsation NSP 30 concrete pump with optional independent conveying cylinder control and a capacity of up to 19 m3/h with diesel operation and 27 m3/h with electric operation. In addition, the accelerator dosing system is fully synchronized with the concrete output through an integrated closed-loop control system. Fitted with a FOPS/ROPS safety cabin with a multi-information display, the machine comes with a proven and accurate spray manipulator with effective rebound protection and high maneuverability. The SF 050 is the choice for superior concrete spraying results in the most demanding underground operations. We provide everything you need to get the best results with sprayed concrete for mining and tunnelling applications, both underground and on the surface. Our offering includes equipment for both concrete spraying and transportation, construction chemicals as well as supporting technologies and services. Key specification Articulated mining sprayer Max. vertical reach: 9.5 m Tramming height: 2.8 m Features Safety FOPS/ROPS approved cabin Cabin door interlock switch with safety brake application as standard Optional reversing camera system for improved reversing visibility Available with additional wide-angle mirrors Optional methane monitoring system
