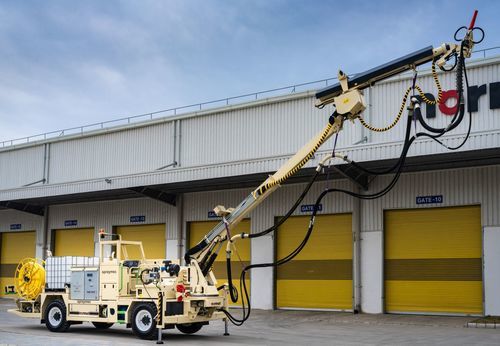

Mobile concrete pump SPRAYMEC 5100

for tunnelfor constructionfor mining applications

Overview
Spraymec 5100 is a mobile concrete sprayer engineered for medium to large tunnel profiles. The closed-loop accelerator dosing synchronizes admixture delivery with concrete output. A low-pulsation NSP 30 double-piston pump (up to 30 m3/h) with reversing function and independent hydraulic control ensures consistent concrete flow. The highly maneuverable spray manipulator delivers wide coverage and rebound protection. An onboard high-volume compressor and large-diameter steel piping minimise blockages. IP65-rated controls, CAN bus diagnostics, and optional automated cleaning and lubrication systems support uptime. Four-wheel steering and four-wheel drive allow operation in confined underground environments.

Key specification

• Rigid frame tunnelling sprayer
• Max. vertical reach: 14 m
• Concrete pump output: Up to 30 m3/h (NSP 30 double-piston pump)
• Tramming height: 2.9 m

Features
Safety

• FOPS/ROPS approved cabin
• Cabin door interlock switch with safety brake application as standard
• Optional reversing camera for improved rear visibility
• SAHR fail-safe safety brakes

Ergonomics and operator environment

• Cabin designed prioritising ergonomics and operator safety
• Suspended driver’s seat with retractable lap belt and safety switch

Productivity and efficiency

• Agile and accurate spray boom with vertical and horizontal tracking, automatic upper boom telescope movement and nozzle nutation
• Excellent rebound protection and proportionally controlled, pressure-regulated hydraulic movements
• Optional Normet SmartScan concrete thickness measurement system
• Low-pulsation NSP 30 double-piston concrete pump (up to 30 m3/h) with reversing function and hydraulically driven agitator
• Accelerator system with hydraulically driven, electrically controlled pump (12 bar) and 1000 l accelerator tank (second 1000 l tank optional)
• Accelerator dosing fully synchronised with concrete delivery
• High-pressure washer with hose reel; optional electrically operated screw compressor
• Optional automatic lubrication system for pump, carrier and spray boom; optional automatic concrete line washing system with protective hopper cover
• Optional high-pressure water system for cleaning and pre-wetting the spraying area

Technical specifications

• Model: Spraymec 5100
• Machine type: Rigid frame tunnelling sprayer
• Max. vertical reach: 14 m
• Concrete pump output: Up to 30 m3/h (NSP 30 double-piston pump)
• Tramming height: 2.9 m
• Accelerator pump: Hydraulically driven, electrically controlled (12 bar)
• Accelerator tank: 1000 l (optional second 1000 l tank)
• Onboard high-volume compressor
• Large-diameter steel piping to minimise blockages
• Controls: IP65-rated
• Diagnostics: CAN bus
• Drive and steering: 4-wheel drive and 4-wheel steering
• Hydraulics: Independent hydraulic control, proportional and pressure-controlled movements
• Optional systems: Automatic lubrication, automatic concrete line washing, high-pressure cleaning system, Normet SmartScan
