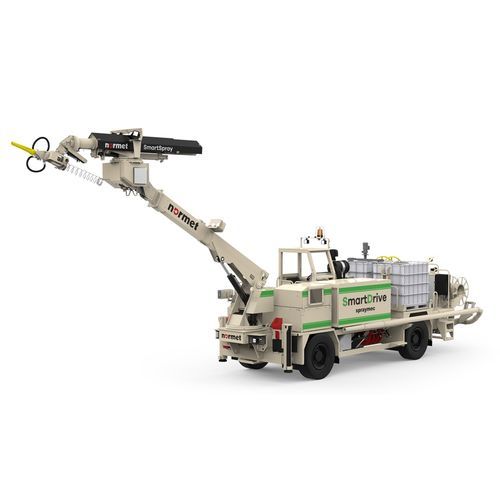

Concrete spraying machine SPRAYMEC 8100 VC SD

electricarticulated arm

Spraymec 8100 VC SD is a battery-electric concrete sprayer offering superior value for tunnelling projects with medium to large cross sections. Built on our SmartDrive BEV architecture with zero local emissions and designed for high-performance sprayed concrete applications with alkali-free accelerators, the machine comes with cutting-edge spraying technology like an unrivalled dosing system and the extremely low-pulsation NSP 40 concrete pump with a theoretical maximum pumping capacity of 30 m3/h, both fully synchronized with an integrated closed-loop control system. In addition, all conveying cylinders of the pump are controlled independently, further reducing pulsation to a minimum. Fitted with a high-capacity on-board compressor and a proven, agile spray manipulator with excellent rebound protection, the machine is equipped with four-wheel steering and 4WD for effortless operation in challenging underground conditions. . Furthermore, the Spraymec 8100 VC SD comes with a FOPS/ROPS safety cabin and a remote control system. The machine is available with both our innovative SmartSpray spraying automation technology and SmartScan, our advanced concrete thickness measurement system. We provide everything you need to get the best results with sprayed concrete for mining and tunnelling applications, both underground and on the surface. Our offering includes equipment for both concrete spraying and transportation, construction chemicals as well as supporting technologies and services. Key specification Battery-electric tunnelling sprayer Max. vertical reach: 14 m Concrete pump output: Up to 30 m3/h Tramming height: 3.4 m Features Safety FOPS/ROPS approved cabin
