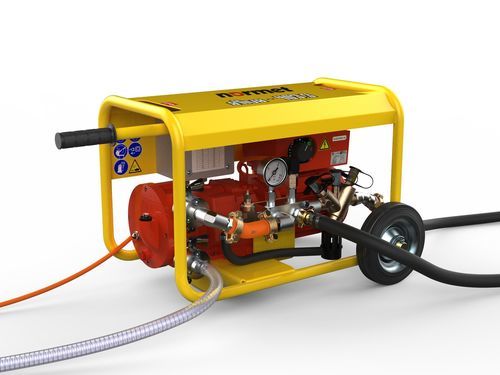

Liquids dosing dispenser ALIVA 403.3

high-precisionmanualcompact

Overview
Aliva dosing units ensure precise dosing of liquid admixtures for wet and dry concrete spraying. Standard equipment includes an Inox fitting with manometer and push switch, and a suction hose with lance. A back-flow preventing valve for potable water protection is available as an option to comply with regulations.

Additional options

• Chassis for easy transportation
• Overvoltage diverter to equalize voltage peaks
• Back-flow preventing valve for potable water protection

Key specification

• Additive dosing for dry and wet spraying
• Pumping output: 24 - 240 litre/h
• Manual stepless adjustment
• Electric motor
• Reliable and rugged design
• Compatible with any pump or rotor machine

Features

• Inox fitting with manometer and push switch
• Frequency converter with potentiometer for manual adjustment
• Suction hose with lance

Benefits

• Factory-set precise dosing
• Suitable for dry and wet spraying
• Stepless output adjustment
• Compact, robust design
• Dry-run resistant

Technical specifications

• Model name: Aliva 403.3
• Function: Liquid admixture dosing unit for wet and dry concrete spraying
• Pumping output range: 24 - 240 litre/h
• Adjustment: Manual stepless output adjustment via frequency converter with potentiometer
• Standard fittings: Inox fitting with manometer and push switch
• Accessories: Suction hose with lance
• Optional safety/compliance: Back-flow preventing valve for potable water protection
• Design: Compact, robust, reliable, dry-run resistant
• Compatibility: Can be combined with any pump or rotor machine
