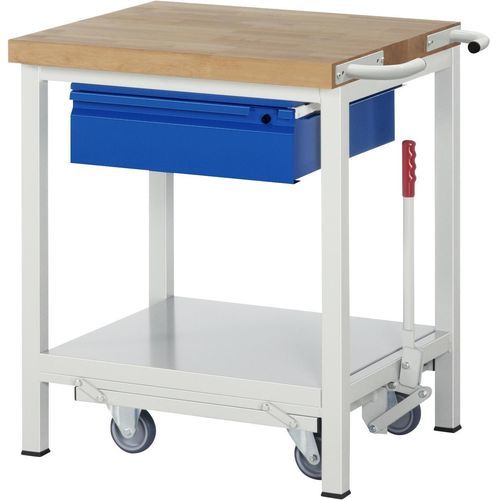

Beech workbench 05-8001I6-077R4F.11
for workshopswith drawerwith compartments

Beech workbench - 05-8001I6-077R4F.11 - RAU - for workshops / with drawer / with compartments
Beech workbench - 05-8001I6-077R4F.11 - RAU - for workshops / with drawer / with compartments
Beech workbench - 05-8001I6-077R4F.11 - RAU - for workshops / with drawer / with compartments - image - 2
Beech workbench - 05-8001I6-077R4F.11 - RAU - for workshops / with drawer / with compartments - image - 3
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, mobile, with compartments
Length

700 mm
(28 in)

Width

Max.: 2,000 mm
(79 in)

Min.: 750 mm
(30 in)

Height

880 mm
(35 in)

Load

Max.: 1,250 kg
(2,755.8 lb)

Min.: 450 kg
(992.1 lb)

Description

Description
  • Solid beech top, 40 mm thickness. Beech lamellae with finger-joint gluing. Front edge rounded, other edges chamfered. Surface protected with environmentally friendly lacquer-oil.
  • Base system: W745 x D650 x H840 mm. 4-leg welded frame with two pairs of leg feet made from 45x45x2 mm steel profile tube including depth braces top and bottom. Undermounted storage shelf with compartment height 405 mm.
  • Undermount/equipment: 1 undermount drawer (W520 x D650 x H175 mm) prepared for drawer divider sets, central lock (pin-cylinder lock with 2 keys), continuous pull handle, roller-mounted slides (90% extension), drawer interior W490 x D560 mm, load capacity 50 kg, fully enclosed drawer pan.
  • Mobility: Lowering chassis with eccentric lever (right side). Eccentric lever operation allowed up to max load 300 kg. Chassis extendable/retractable. Chassis fitted with 2 fixed castors and 2 swivel castors (wheel diameter 100 mm, overall wheel height 125 mm, tread thermoplastic rubber, 85° Shore, wheel core polypropylene). Fixed castors on the left, swivel castors on the right (wheel plate mounting).
  • Cross braces: C-profile (40x40x2 mm) under the top (front and rear). Rear storage shelf flush with base system, shelf depth 650 mm.
  • Push handles supplied loose.


Equipment (details)
  • 1 undermount drawer W520 x D650 x H175 mm with partitioning: 1 x drawer-size L 1xH150 mm.
  • Roller-mounted slides (90% extension). Usable drawer height = front height minus 15 mm.
  • Fully closed drawer pan suitable for drawer divider sets.
  • Central lock: pin-cylinder lock including 2 keys.


Top / Material
  • Solid beech: regional, PEFC-certified raw wood, in-house production (from log to top).
  • Top thickness: 40 mm. Surface: lacquer-oil (environmentally friendly).


Technical data
  • Slide type: partial extension 90%
  • Width: 750 mm (other widths available as variants: 1000, 1250, 1500, 2000 mm)
  • Mobile load capacity: 450 kg
  • Stationary load capacity: 1250 kg
  • Height: 880 mm
  • Number of drawers: 1
  • Depth: 700 mm
  • Top type: solid beech worktop
  • Top thickness: 40 mm
  • Mobility: lowering chassis (extendable/retractable, eccentric lever)


Brand / Model / Item data
  • Brand: RAU
  • Model: 8001 BASIC
  • Article no.: 05-8001I6-077R4F.11
  • EAN: 4040376085634
  • Base system: W745 x D650 x H840 mm
  • Top construction: beech lamella, finger-joint gluing, thickness 40 mm
  • Frame: 4-leg welded frame, steel profile tube 45x45x2 mm, cross braces C-profile 40x40x2 mm
  • Shelf depth: 650 mm (rear flush)
  • Shelf compartment height: 405 mm
  • Drawer (internal): W490 x D560 mm, load capacity 50 kg, extension 90%
  • Chassis: 2 fixed castors + 2 swivel castors, wheel diameter 100 mm, wheel height 125 mm, tread thermoplastic rubber (non-marking), wheel core polypropylene
  • Eccentric lever operation load limit: max. 300 kg
  • Delivery condition: assembled (workbench delivered assembled)
  • Warranty note: 5 years (informative)
