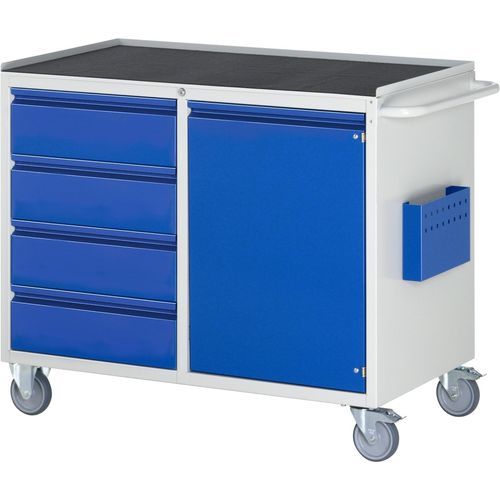

4-drawer workshop cart 05-LL5.1.12I-MT.11

Product description
Top cabinet including metal top with 3-sided roll edge and anti-slip mat; top thickness 25 mm.

Equipment

• left: 4 x drawer (size L) 4xH180 mm
• right: 1 x hinged door (size L) 1xH720 mm with behind it one height-adjustable shelf
• drawer size L: internal dimension W490 x D560 mm; load capacity per drawer 100 kg; usable drawer height = front height minus 15 mm
• roller-mounted partial-extension slides (90 %) with self-entry and anti-return
• hinged doors with self-closing spring hinges, opening 180°
• continuous, fully integrated handle strip
• central locking: pin cylinder lock with 2 keys
• 4 wheels: 2 fixed wheels and 2 swivel wheels with brake, mounted on welded wheel plates; wheel diameter 125 mm, overall wheel height 150 mm; tread thermoplastic rubber (grey, non-marking, 85° Shore); wheel core polypropylene
• push handle on right side, handle projects 135 mm
• document pocket W325 x D55 x H200 mm; front with square-hole system perforation (10x10 mm holes, 38 mm hole-center spacing) for perforated-panel accessories

Variants / configuration

• Top selection: Beech top; Melamine top; Metal top (selected)
• Frame color examples: RAL3000 flame red; RAL5002 ultramarine blue; RAL5010 gentian blue; RAL5012 light blue; RAL5015 sky blue; RAL5018 turquoise blue; RAL5011 steel blue; RAL6011 reseda green; RAL7035 light grey (standard); RAL7045 tele grey; RAL9006 white aluminium; RAL9011 graphite black; RAL7031 blue grey; RAL7016 anthracite grey
• Equipment color examples: RAL3000 flame red; RAL5002 ultramarine blue; RAL5010 gentian blue (standard); RAL7035 light grey; other RAL colors as above

Notes / USP

• powder-coated finish
• mobile surface load 450 kg
• delivered assembled
• 5 years warranty
• Made in Germany

Technical specifications

• width: 1145 mm
• height: 975 mm
• depth: 650 mm
• number of drawers: 4
• top type: Metal top
• top thickness: 25 mm
• extension type: partial extension 90 %
• mobile surface load: 450 kg
• drawer internal dimensions: W490 x D560 mm
• drawer load capacity: 100 kg per drawer
• wheel diameter: 125 mm; wheel overall height: 150 mm; tread: thermoplastic rubber, 85° Shore; wheel core: polypropylene
• document pocket dimensions: W325 x D55 x H200 mm
• central locking: pin cylinder lock with 2 keys
