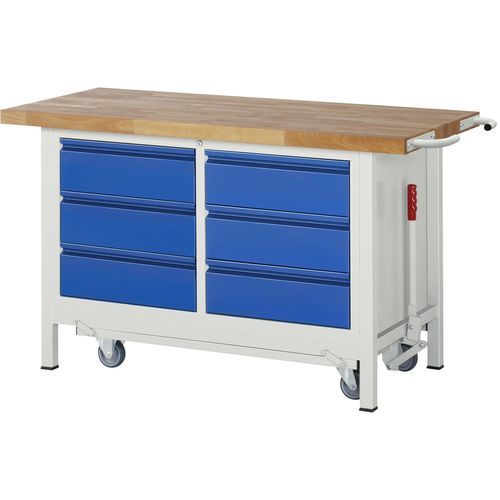

Beech workbench 8473 BASIC

with drawerheight-adjustable6-drawer

Product description

• Beech solid worktop, thickness 40 mm.
• Beech slats with finger-joint gluing. Front edge radius, other edges chamfered.
• Surface protection by eco-friendly oil-lacquer.
• Classic worktop: load-bearing, compression-resistant, wear-resistant and reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe dimensions: W1235 x D650 x H840 mm.
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45 x 45 x 2 mm) including depth braces (top and bottom). Frame feet fitted with end caps and anti-slip nubs for secure footing.
• Under-mounted lowering chassis with eccentric lever (right). Operation of eccentric lever permitted up to a maximum load of 300 kg. Chassis can be engaged and disengaged using the lever. Chassis fitted with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber non-marking, 85° Shore, wheel body polypropylene). Fixed castors mounted on the left side, swivel castors on the right (plate mounting).
• Sliding handles supplied loose.

Equipment

• 1 double underbase container, W1145 x D650 x H620 mm with the following division: left: 3 x drawer size L 3 x H180 mm; right: 3 x drawer size L 3 x H180 mm.
• Drawer size L (internal W490 x D560 mm, load capacity 100 kg).
• Roll-mounted partial extension slides (90% extension) with self-entry and return lock. Usable drawer height equals front height minus 15 mm. Drawer pan completely closed to optimally receive drawer divider sets.
• Continuous, fully integrated handle rail (handle edging).
• Central lock (pin cylinder lock with 2 keys).

Technical data (overview)
Pull-out type: Partial extension 90%
Width: 1500 mm
Mobile surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Number of drawers: 6
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowering chassis


Characteristics / Technical specifications

• Model designation: 8473 BASIC
• Top thickness: 40 mm (beech, finger-joint glued)
• Worktop material: Beech solid
• External dimensions (standard variant): W 1500 x D 700 x H 880 mm
• System underframe (internal dimensions): W1235 x D650 x H840 mm
• Number of drawers: 6 (2 x 3-drawer underbase containers)
• Drawer internal (size L): W490 x D560 mm, load capacity 100 kg, partial extension 90%
• Chassis: Lowering chassis with eccentric lever, 2 fixed + 2 swivel castors, wheel diameter 100 mm
• Stationary surface load: 1250 kg; mobile: 450 kg
• Frame material: Profile steel tube 45 x 45 x 2 mm
• Worktop surface protection: Oil-lacquer (eco-friendly)
