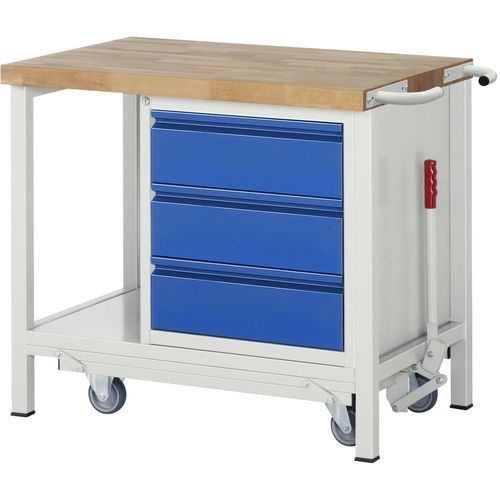

3-drawer tool cabinet 8157 BASIC

Add to favorites

Compare this product

Characteristics

Product description

Beech solid worktop, 40 mm thickness. Beech lamellas finger-jointed. Front edge radiused, other edges chamfered. Surface protection with eco-friendly lacquered linseed oil. Classic worktop: load-bearing, pressure resistant, long-lasting, natural, wear-resistant and reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
System underframe: W995 x D650 x H840 mm.
Lowerable chassis with eccentric lever (right). Operation of eccentric lever only permitted up to max. 300 kg payload. Chassis retractable; chassis fitted with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm), tread made of thermoplastic rubber (non-marking, 85° Shore), wheel body polypropylene. Fixed castors mounted on the left side, swivel castors on the right (plate-mounted).
4-leg welded frame with two pairs of profile steel tube feet (45 x 45 x 2 mm) including depth bracings (top and bottom). Frame feet fitted with end caps including anti-slip nubs for secure standing.
Bottom shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
Loose sliding handles supplied.

Equipment

1 underframe container on the right, W580 x D650 x H620 mm with the following layout: 3 x drawer size L (3 x H180 mm).
Drawer size L: internal W490 x D560 mm, load capacity 100 kg. Roller-mounted partial-extension slides (90% extension) with self-return and anti-rollback. Usable drawer height corresponds to front height minus 15 mm. Drawer trough completely closed for optimal use with drawer divider sets.
Continuous, fully integrated handle rail (grip edge).
Central locking (pin cylinder lock with 2 keys).

Mobility and load information

Mobility: Lowerable chassis (distinguishable permissible surface loads for mobile / stationary).
Operation of chassis via eccentric lever (only up to max. 300 kg payload).

Technical specifications

Drawer type: partial-extension 90%
Width: 1000 mm
Depth: 700 mm
Height: 880 mm
System underframe (dimensions): W995 x D650 x H840 mm
Top type: beech solid worktop
Top thickness: 40 mm
Number of drawers: 3
Drawer internal: W490 x D560 mm, load capacity 100 kg
Permissible surface load, mobile: 450 kg
Permissible surface load, stationary: 1250 kg
Frame: 4-leg welded frame, profile steel tube 45 x 45 x 2 mm, with depth bracings
Chassis: 2 fixed + 2 swivel castors, wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber (non-marking, 85° Shore), wheel body polypropylene
Underframe features: bottom shelf flush at rear, compartment height 620 mm
Underframe container right: W580 x D650 x H620 mm
Drawer slides: roller-mounted partial-extension slides, self-return, anti-rollback
Central lock: pin cylinder lock with 2 keys
Worktop finish: lacquered linseed oil (environmentally friendly)
