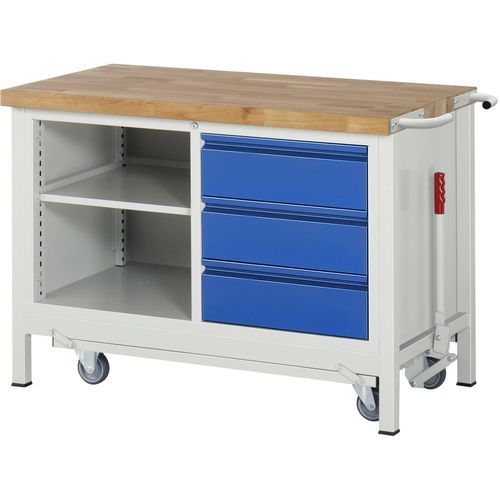

3-drawer tool cabinet 8462 BASIC

Description

• Beech solid worktop, thickness 40 mm.
• Beech lamellae with finger-joint gluing. Front edge radius, other edges chamfered. Surface protection with eco-friendly lacquer-oil. Classic worktop: load-resistant, pressure-resistant, durable, natural, wear-resistant, reusable. 100% in-house production from PEFC-certified raw material from sustainable regional forestry.
• System underframe, W1235 x D650 x H840 mm.
• 4-leg welded frame with two pairs of frame feet of profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet bottom with end element including anti-slip nubs for secure stand.
• Underbuilt chassis with eccentric lever (right). Operation of eccentric lever only up to max load 300 kg. The chassis can be engaged and disengaged with the eccentric lever. Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber (non-marking, 85° Shore), wheel core polypropylene). Fixed castors are mounted on the left side, swivel castors on the right side (plate mounting).
• Sliding handles (supplied loose).

Equipment

• 1 double underframe container, W1145 x D650 x H620 mm with the following layout: left: 1 x shelf L (height-adjustable); right: 3 x drawer size L 3x180 mm.
• Drawer size L (internal W490 x D560 mm, load capacity 100 kg). Ball-bearing partial-extension slides (90% extension) with self-engagement and anti-return. The usable drawer height corresponds to the front height minus 15 mm. Drawer pan fully enclosed for optimal accommodation of drawer divider sets.
• Continuous, fully integrated handle rail (handle edge).
• Central locking (pin-cylinder lock with 2 keys).

Technical data
Type of extension: partial extension 90%
Width: 1250 mm
Load capacity mobile: 450 kg
Load capacity stationary: 1250 kg
Height: 880 mm
Number of drawers: 3
Depth: 700 mm
Top type: beech solid worktop
Top thickness: 40 mm
Mobility: lowerable chassis

Characteristics / technical specifications

• Brand: RAU
• Model: 8462 BASIC
• Article number: 05-8462I2-127R4F.11
• EAN: 4040376128386
• Worktop material: beech solid, lamellae with finger-joint gluing
• Worktop thickness: 40 mm
• Surface: lacquer-oil (eco-friendly)
• Top edges: front radius-milled, other edges chamfered
• System underframe (dimensions): W1235 x D650 x H840 mm
• Overall dimensions (product): Width 1250 mm x Depth 700 mm x Height 880 mm
• Frame: 4-leg welded frame, profile steel tube 45x45x2 mm with depth braces
• Chassis: lowerable, eccentric lever (right), lever operation up to max load 300 kg
• Wheels: 2 fixed and 2 swivel castors; wheel diameter 100 mm; overall height 125 mm; tread thermoplastic rubber (non-marking, 85° Shore); wheel core polypropylene
• Load capacity stationary: 1250 kg; mobile: 450 kg
• Drawers: 3; drawer size L internal W490 x D560 mm; load capacity 100 kg per drawer; partial extension 90%; ball-bearing slides with self-engagement and anti-return
• Drawer internal division: suitable for drawer divider sets; drawer pan fully enclosed
• Locking: central lock (pin-cylinder lock with 2 keys)
• Handles: continuous integrated handle rail; sliding handles supplied loose
• Delivery state: delivered assembled
• Country/quality note: Made in Germany; delivery time approx. 5 working days (depending on variant)
