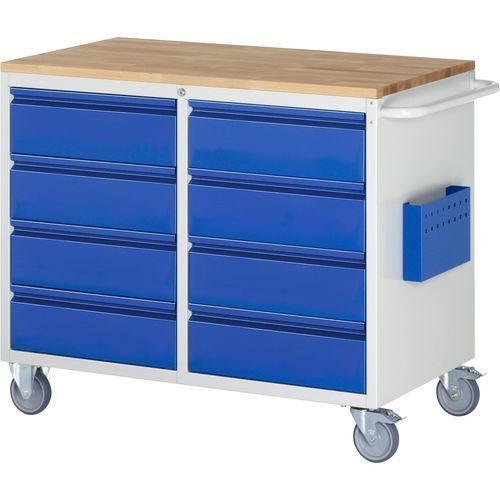

8-drawer workshop cart 05-LL5.1.1I-B.11

8-drawer workshop cart - 05-LL5.1.1I-B.11 - RAU
8-drawer workshop cart - 05-LL5.1.1I-B.11 - RAU
8-drawer workshop cart - 05-LL5.1.1I-B.11 - RAU - image - 2
8-drawer workshop cart - 05-LL5.1.1I-B.11 - RAU - image - 3
Add to favorites
Compare this product

Characteristics

Number of drawers
8-drawer

Description

Description
  • Top cabinet including a beech solid worktop, thickness 25 mm.
  • Beech lamella with finger-jointing. Front edge rounded, other edges chamfered. Surface protected with eco-friendly lacquer-oil. Worktop: load-bearing, pressure-resistant, durable, natural, wear-resistant and renewable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.


Equipment
  • Left: 4 × drawers size L (4 × H 180 mm).
  • Right: 4 × drawers size L (4 × H 180 mm).
  • Drawer size L: internal dimensions W 490 × D 560 mm, load capacity 100 kg. Usable drawer height equals front height minus 15 mm. Partially ball-bearing telescopic slides (90% extension) with self-close and anti-return.
  • Continuous, fully integrated handle strip.
  • Central locking: pin cylinder lock with 2 keys.
  • Castors: 2 rigid and 2 swivel castors with brake, mounted on welded plates; wheel diameter 125 mm, overall height 150 mm, tread thermoplastic rubber (grey, non-marking, 85° Shore), wheel core polypropylene. Rigid castors on the left (front and rear) and swivel castors with brake on the right (front and rear).
  • Push handle mounted on the right side (handle projects 135 mm).
  • Document pocket: W 325 × D 55 × H 200 mm. Front with square-hole system (10 × 10 mm, hole center-to-center 38 mm) to accept pegboard accessories.
  • Product USPs: powder-coated frame; mobile surface load 450 kg; delivered assembled; 5-year warranty; Made in Germany.


Variants / Options
  • Top options: beech top (standard in this configuration), melamine top, metal top.
  • Frame colour (selection): RAL7035 light grey (standard), RAL3000 flame red, RAL5002 ultramarine blue, RAL5010 gentian blue, RAL5012 light blue, RAL5015 sky blue, RAL5018 turquoise blue, RAL5011 steel blue, RAL6011 reseda green, RAL7045 tele grey, RAL9006 white aluminium, RAL9011 graphite black, RAL7031 blue grey, RAL7016 anthracite grey.


Note
  • Delivery time (current indication on the product page): approx. 15 working days.


Technical specifications
  • Width: 1145 mm
  • Height: 975 mm
  • Depth: 650 mm
  • Number of drawers: 8
  • Drawer internal (size L): W 490 × D 560 mm, load capacity 100 kg
  • Top type: beech top
  • Top thickness: 25 mm
  • Mobile surface load: 450 kg
