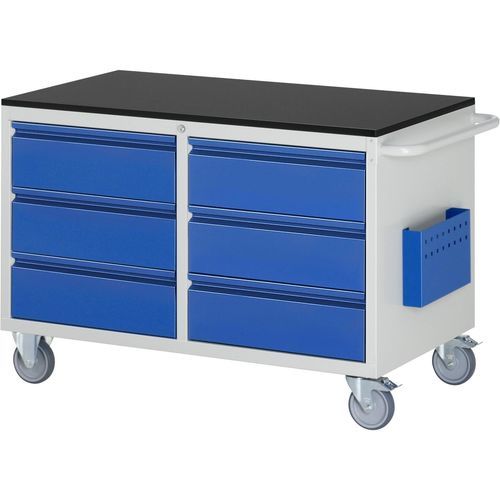

6-drawer workshop cart 05-LL3.0.0I-M.11
Add to favorites
Compare this product
Characteristics
- Number of drawers
- 6-drawer
Description
Product description
Equipment
Technical specifications
- Upper cabinet including worktop with melamine resin coating, thickness 20 mm.
- Top and bottom with black melamine resin direct coating. Melamine resin coating according to DIN 68765. Splash-proof and dirt-resistant. Surface properties according to EN14322/EN14323: abrasion resistance Class 3A; scratch resistance N>1.5; stain resistance Level ≥ 3 (e.g. acetone, alcohol, organic solvents, petrol); crack resistance Level ≥ 3; cigarette ember behavior Grade 3; water vapor behavior Grade 4. Certificate of harmlessness regarding migration behavior, suitable for use in food areas. Covering: normally flammable (B2) according to DIN 4102. Panel core made of particleboard according to EN309/EN312 (emission class E1). All-around light grey antistatic ABS edge.
Equipment
- Left: 3 x drawer size L 3xH180 mm
- Right: 3 x drawer size L 3xH180 mm
- Drawer size L (internal B490 x D560 mm, load capacity 100 kg). The usable height of the drawer corresponds to the front height minus 15 mm. Roller-mounted partial extension rails (90% extension) with self-closing and anti-return device.
- Continuous, fully integrated grip profile (grip edge).
- Central locking (pin cylinder lock with 2 keys).
- 2 fixed and 2 swivel castors with brake, each mounted on welded wheel plates. Wheel diameter 125 mm, overall height 150 mm, tread made of thermoplastic rubber (grey, non-marking, 85° Shore), wheel body made of polypropylene. Fixed castors on the left (front and rear) and swivel castors with brake on the right (front and rear).
- Push handle mounted on the right side (handle projects 135 mm).
- Document pocket B325 x D55 x H200 mm. Front with square-hole system perforation (10x10 mm holes, hole center-to-center 38 mm) to accept perforated panel accessories.
Technical specifications
- Article number: 05-LL3.0.0I-M.11
- EAN: 4040376198914
- Width: 1145 mm
- Depth: 650 mm
- Height: 790 mm
- Number of drawers: 6
- Surface load (mobile): 450 kg
- Top type: Melamine-Top
- Worktop thickness (description): 20 mm
- Panel thickness (technical data): 19 mm
- Drawer internal dimension (size L): B490 x D560 mm, load capacity per drawer 100 kg
- Extension: Partial extension 90% with self-closing and anti-return device
- Castors: 2 fixed + 2 swivel with brake, wheel diameter 125 mm, overall height 150 mm
- Delivery time: 15 working days
- Top variant on site: Melamine-Top
