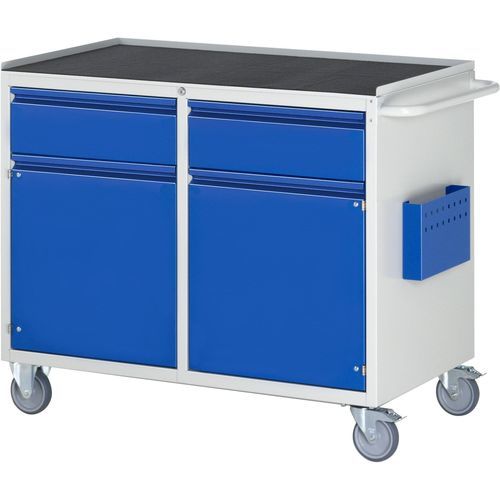

2-drawer workshop cart 05-LL5.8.8I-MT.11

2-drawer workshop cart - 05-LL5.8.8I-MT.11 - RAU
2-drawer workshop cart - 05-LL5.8.8I-MT.11 - RAU
2-drawer workshop cart - 05-LL5.8.8I-MT.11 - RAU - image - 2
2-drawer workshop cart - 05-LL5.8.8I-MT.11 - RAU - image - 3
2-drawer workshop cart - 05-LL5.8.8I-MT.11 - RAU - image - 4
Add to favorites
Compare this product

Characteristics

Number of drawers
2-drawer

Description

Description
  • Upper cabinet with metal top featuring a 3-sided roll edge and anti-slip mat; top thickness 25 mm.


Equipment
  • Left: 1 × drawer (height 180 mm) and 1 × hinged door (height 540 mm) with 1 adjustable shelf behind.
  • Right: 1 × drawer (height 180 mm) and 1 × hinged door (height 540 mm) with 1 adjustable shelf behind.
  • Drawer internal dimensions W490 × D560 mm; drawer load capacity 100 kg. Usable drawer height = front height minus 15 mm.
  • Ball-bearing partial-extension slides (90% extension) with self-engaging and anti-reverse mechanism.
  • Hinged doors with self-closing spring hinges, 180° opening.
  • Continuous fully integrated handle strip.
  • Central locking (pin-cylinder lock with 2 keys).
  • 2 rigid and 2 swivel castors with brake, each mounted on welded wheel plates.
  • Wheel diameter 125 mm, overall height 150 mm; tread made of thermoplastic rubber (grey, non-marking, 85° Shore); wheel core polypropylene.
  • Rigid castors fitted on the left (front and rear); swivel castors with brake fitted on the right (front and rear).
  • Push handle mounted on the right side (handle protrudes 135 mm).
  • Document pouch W325 × D55 × H200 mm.
  • Front equipped with square-hole system perforation (10 × 10 mm holes, 38 mm center-to-center) for pegboard accessories.


Technical specifications
  • Width: 1145 mm
  • Height: 975 mm
  • Depth: 650 mm
  • Mobile load capacity: 450 kg
  • Number of drawers: 2
  • Top type: metal top
  • Top thickness: 25 mm
