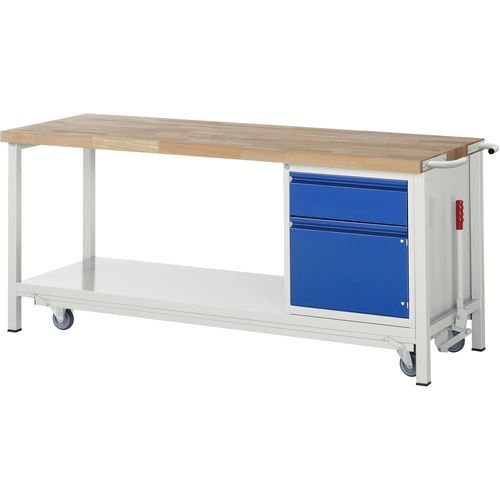

2-drawer tool cabinet 8152 BASIC

Product overview

• Beech solid worktop, thickness 40 mm. Beech lamellas with finger-joint gluing.
• Front edge radiused, other edges chamfered. Surface protection with eco-friendly varnish-oil.
• System underframe dimension example: W1995 x D650 x H840 mm (base reference).
• Lowerable chassis with eccentric lever (right); operation of the eccentric lever only permitted up to a max load of 300 kg.
• Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber, wheel core polypropylene).
• Bottom shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
• Sliding handles supplied loose.

Description / Application

• The classic among worktops: load-bearing, pressure-resistant, durable and reusable. 100% production from tree to worktop using PEFC-certified raw material.
• Mobility: Lowerable chassis enables variable use as a transportable workbench with secure stance (anti-slip studs).

Equipment

• 1 underframe container on the right W580 x D650 x H620 mm with layout: 1x drawer (front height 180 mm) and 1x hinged door (H360 mm).
• Drawer: internal W490 x D560 mm, load capacity 100 kg. Roller-mounted partial-extension slides (90% extension) with self-return and anti-rebound. Drawer box fully enclosed.
• Hinged doors with self-closing spring hinges, opening angle 180°.
• Continuous, fully integrated handle rail (handle edging) and central lock (pin-cylinder lock with 2 keys).
• 4-leg welded frame with two pairs of frame feet made of profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet at bottom with end-piece including anti-slip stud.

Technical data (summary)
Extension type: Partial extension 90%
Width: 2000 mm
Mobile surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Number of drawers: 1
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis

Scope of delivery / Notes

• Workbench as described including under-mounted chassis (with eccentric lever), bottom shelf, 1 drawer, 1 door; sliding handles supplied loose.
• Express production optionally bookable (if offered): order received by 11:00 → production/shipment next day (additional charge may apply).

Characteristics / Technical specifications

• EAN: 4040376148209
• Article number: 05-8152I6-207R4F.11
• Net price (unit): 1204.00 EUR
• Gross price (incl. VAT): 1432.76 EUR
• Top material: Beech solid (finger-joint glued)
• Top thickness: 40 mm
• Total width variant (example): 2000 mm
• System underframe dimension (example): W1995 x D650 x H840 mm
• Stationary surface load: 1250 kg
• Mobile surface load: 450 kg
• Top edge height: 880 mm
• Depth: 700 mm
• Drawer load capacity: 100 kg (partial extension 90%)
• Mobility: Lowerable chassis with 2 fixed and 2 swivel castors (Ø 100 mm)
