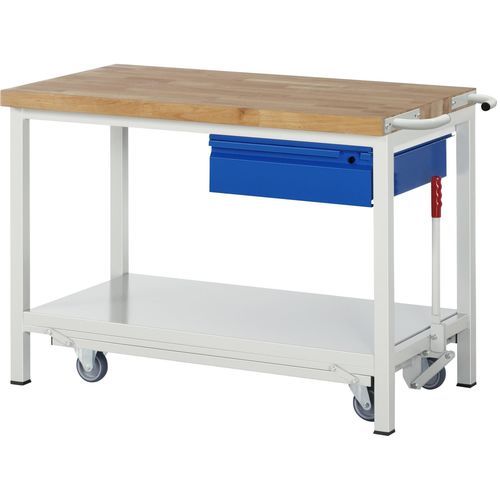

1-drawer tool cabinet 8001 BASIC

Short description
Beech solid worktop, thickness 40 mm. Beech lamellas with finger-jointed gluing. Front edge radiused, other edges chamfered. Surface protection by eco-friendly lacquer-oil. Load-bearing, compression-resistant, wear-resistant, reusable. 100% in-house production from PEFC-certified raw material sourced from sustainable regional forestry.

Structure & frame

• System underframe: W1245 x D650 x H840 mm
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45 x 45 x 2 mm) including depth bracing (top and bottom)
• Frame feet fitted with end caps including anti-slip nubs for secure standing
• Under-mounted mobile chassis with eccentric lever (right); operation of the eccentric lever possible only up to a maximum load of 300 kg; chassis extendable and retractable
• Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm); tread made of thermoplastic rubber (non-marking, 85° Shore), wheel body polypropylene; fixed castors left, swivel castors right (wheel plate mounting)
• Crossbars from C-profile (40 x 40 x 2 mm) mounted under the worktop (front, rear)
• Lower storage shelf (depth 650 mm, rear flush with system underframe), shelf height 580 mm
• Loose sliding handles supplied

Equipment / Drawer

• 1 underframe drawer on the right, W520 x D650 x H175 mm with the following division: 1 x drawer size L (1 x H150 mm)
• Drawer internal dimensions: W490 x D560 mm; load capacity 50 kg
• Roller-mounted slides (partial extension 90%)
• Usable drawer height corresponds to front height minus 15 mm
• Drawer pan fully enclosed to optimally accept drawer divider sets
• Continuous, fully integrated handle strip
• Central locking: pin cylinder lock with 2 keys

Note
The workbench combines a beech solid worktop with a steel frame and a lowering mobile chassis for flexible use in industrial, trade and workshop environments.

Characteristics / Technical specifications

• Drawer extension: partial extension 90%
• Width: 1250 mm
• Depth: 700 mm
• Height: 880 mm
• Surface load, mobile: 450 kg
• Surface load, stationary: 1250 kg
• Number of drawers: 1
• Top type: beech solid worktop
• Top thickness: 40 mm
• Mobility: lowering chassis
• System underframe (dimensions): W1245 x D650 x H840 mm
• Frame material: profile steel tube 45 x 45 x 2 mm
• Castors: 2 fixed + 2 swivel castors, wheel diameter 100 mm, tread thermoplastic rubber (non-marking, 85° Shore)
• Max. operable eccentric lever load: 300 kg (for extension/retraction of the chassis)
