Monocrystalline silicon photovoltaic module SL-G12

IP68

Overview

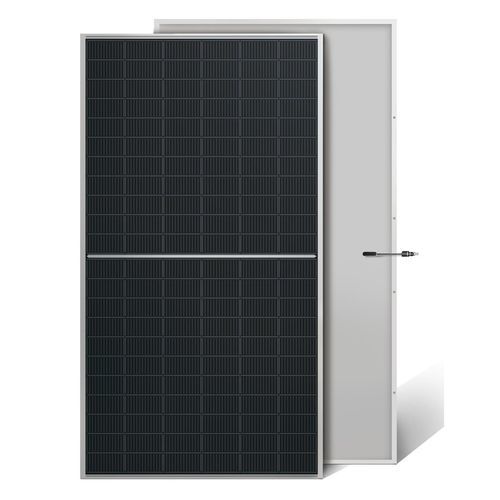

Gigalumi SL-G12 is a P-type monocrystalline photovoltaic module with a power range of 585–605 W and a rated maximum power of 605 W. The module uses large 210×105 mm cells arranged in a 120-cell (6×20) layout and provides up to 21.4% conversion efficiency. It is intended for commercial, industrial and utility-scale photovoltaic installations.

Technical information
Cell: P-type monocrystalline 210×105 mm
Number of cells: 120 (6×20)
Rated maximum power (Pmax): 605 W (power range 585–605 W)
Maximum efficiency: 21.4%
Junction box rating: IP68
Maximum system voltage: 1500 V DC
Operating temperature: -40 to +85 °C
Connectors: MC4 or MC4-compatible

Technical specifications

• Cell type: P-type monocrystalline 210×105 mm
• Number of cells: 120 (6×20)
• Rated maximum power (Pmax): 605 W
• Maximum efficiency: 21.4%
• Junction box rating: IP68
• Maximum system voltage: 1500 V DC
• Operating temperature range: -40 to +85 °C
• Connectors: MC4 or MC4-compatible
