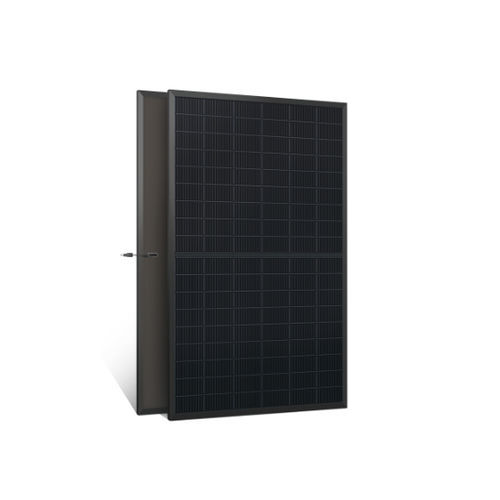

Monocrystalline silicon photovoltaic module SL-M10BIP68
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Other characteristics
- IP68
- Peak power (Wp)
Min.: 390 W
Max.: 410 W
- Module efficiency
21 %
Description
Product
Gigalumi SL-M10B
Overview
Power range: 390-410 W
Information
Cell: P-type monocrystalline 182×91 mm
No. of cells: 108 cells (6×18)
Rated maximum power (Pmax): 410 W
Maximum Efficiency: 21.00%
Junction Box: IP68
Maximum System Voltage: 1500 V DC
Operating Temperature: -40℃ to +85℃
Connectors: MC4 or MC4 compatible
Specifications
Gigalumi SL-M10B
Overview
Power range: 390-410 W
Information
Cell: P-type monocrystalline 182×91 mm
No. of cells: 108 cells (6×18)
Rated maximum power (Pmax): 410 W
Maximum Efficiency: 21.00%
Junction Box: IP68
Maximum System Voltage: 1500 V DC
Operating Temperature: -40℃ to +85℃
Connectors: MC4 or MC4 compatible
Specifications
- Model series/name: SL-M10B
- Cell type: P-type monocrystalline, size 182×91 mm
- Number of cells: 108 (6×18)
- Rated maximum power (Pmax): 410 W
- Power range: 390-410 W
- Maximum module efficiency: 21.00%
- Junction box protection rating: IP68
- Maximum system voltage: 1500 V DC
- Operating temperature range: -40℃ to +85℃
- Connectors: MC4 or MC4 compatible
